Description

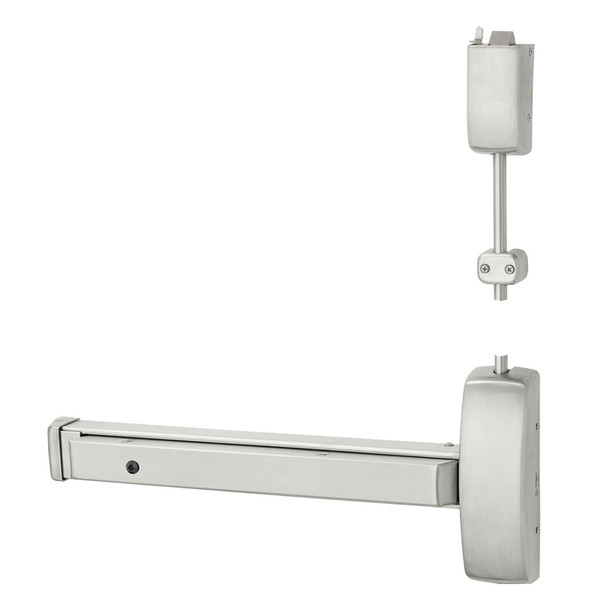

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood or metal doors requiring Grade 1 security and reliability. Ideal for commercial facilities, schools, and healthcare environments, it provides code-compliant egress while exceeding ANSI/BHMA standards. Modular construction with few moving parts ensures maintenance-free operation and long-term durability.
This left-hand reverse (LHR) model suits 1.75-inch thick doors and fits 24-32 inch widths without cutting. Compatible with rim and rod configurations, it supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on your specific installation and to ensure proper keying and configuration.
Specifications
- Brand: Sargent
- Model: 19-NB8713E ETP LHR 32D
- Series: 80 Series
- Configuration: Exit Device with Left-Hand Reverse (LHR) operation
- Door Thickness: 1-3/4 inch (44mm)
- Door Width Range: 24 to 32 inches (61-81cm)
- No cutting required for 32-inch doors
- Compatible Door Types: Wood or metal
- Minimum Stile: 4-1/2 inch (114mm) with trim; 3-1/2 inch (44mm) without trim
- Standards: Exceeds ANSI/BHMA Grade 1 requirements
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
