Description

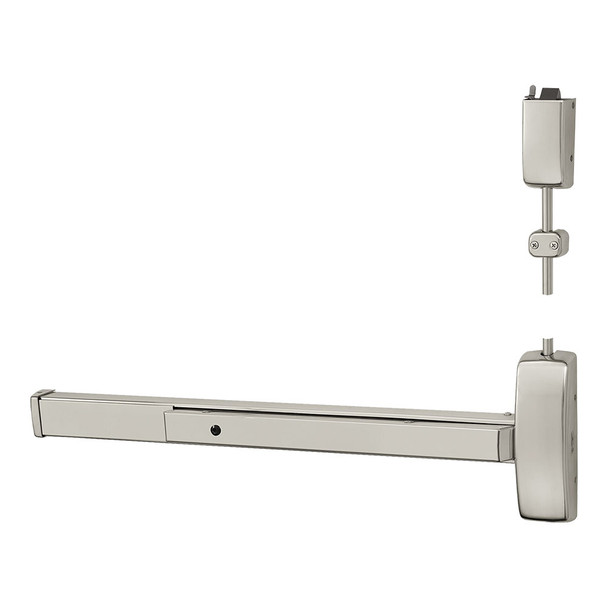

The Sargent 80 Series exit device is a heavy-duty panic bar solution for commercial facilities requiring ANSI/BHMA Grade 1 certified security. Designed for wood or metal doors 1-3/4" thick, this rim-mounted device combines modular construction with minimal moving parts for maintenance-free, long-lasting performance in high-traffic environments.
This model fits doors 24" to 32" wide without cutting for 32" doors. Compatible with standard 4-1/2" minimum stiles and available with optional delayed egress, alarmed exit, and electric latch retraction features. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Brand: Sargent
- Model: 19-NB8713F ETA
- Configuration: Rim, LHR (Left Hand Reverse)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1-3/4" (44mm)
- Door Width Range: 24" to 32" (61cm to 81cm)
- Door Width - No Cut: 32"
- Minimum Stile with Trim: 4-1/2" (114mm)
- Minimum Stile without Trim: 3-1/2" (44mm)
- Certification: ANSI/BHMA Grade 1
- Series: 80 Series
