Description

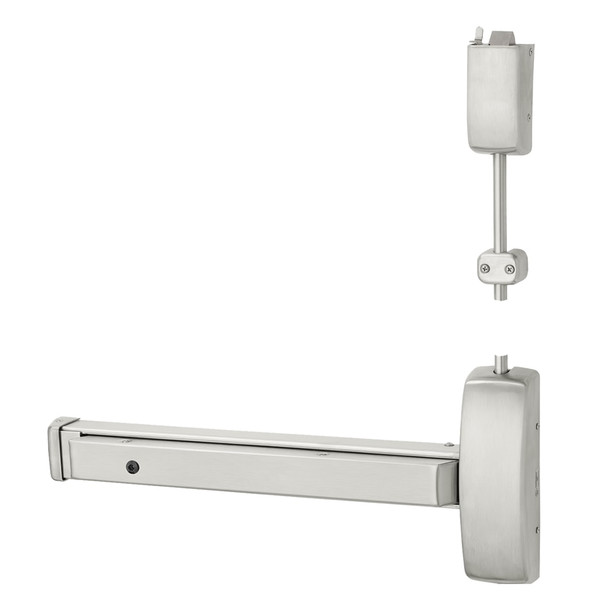

The Sargent 80 Series exit device is a heavy-duty panic bar solution for facilities requiring Grade 1 security and reliability. Ideal for commercial buildings, hospitals, and high-traffic environments, this rim-mounted device exceeds ANSI/BHMA standards and installs on wood or metal doors 1.75 inches thick with a 32-inch width.
The 19-NB8715E features modular construction, minimal moving parts, and maintenance-free operation. Compatible with doors up to 32 inches wide without rail cutting. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for installation guidance, keying options, and access to delayed egress, alarmed exit, and electric latch retraction configurations.
Specifications
- Model: 19-NB8715E ETL LHR 32D
- Brand: Sargent
- Series: 80 Series
- Configuration: Rim-mounted
- Handing: Left Hand Reverse (LHR)
- Door Width: 24-32 inches (E Rail, no cutting required for 32-inch doors)
- Door Thickness: 1.75 inches (44mm), wood or metal
- Minimum Stile: 4.5 inches with trim, 3.5 inches without trim
- Grade: ANSI/BHMA Grade 1 compliant and exceeding
- Construction: Modular with few moving parts
