Description

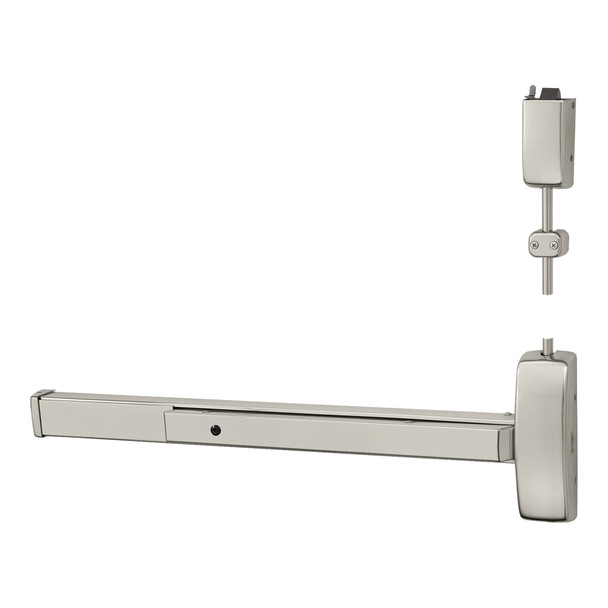

The Sargent 80 Series exit device is a heavy-duty panic bar designed for wood and metal doors in commercial and institutional buildings. It solves security and egress compliance challenges with Grade 1 ANSI/BHMA construction, modular design, and minimal maintenance requirements ideal for facilities demanding long-term durability.
This rim-mounted, right-hand reverse model fits doors 1-3/4 inches thick and works with E, F, J, and G rail options for door widths from 24 to 48 inches. Delayed egress, alarmed, and electric latch retraction options are available for specialized applications. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert configuration guidance and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 19-NB8715F ETA RHR 32D
- Type: Rim Exit Device, Right-Hand Reverse
- Door Thickness: 1-3/4 inches (44mm)
- Door Width Range (E Rail): 24 to 32 inches (61cm to 81cm)
- Door Width Range (F Rail): 33 to 36 inches (84cm to 91cm)
- Door Width Range (J Rail): 37 to 42 inches (94cm to 107cm)
- Door Width Range (G Rail): 43 to 48 inches (110cm to 122cm)
- Stile Requirement: 4-1/2 inches minimum (with trim); 3-1/2 inches minimum (without trim)
- Door Material: Wood or Metal
- Rating: ANSI/BHMA Grade 1
- Options: Delayed Egress, Alarmed Exit, Electric Latch Retraction
