Description
The Sargent 80 Series exit device is a heavy-duty push bar panic hardware solution for wood and metal doors in commercial buildings. Designed for facilities requiring Grade 1 security and durability, this rim-mounted device exceeds ANSI/BHMA standards for cycle strength and is maintenance-free with modular construction and minimal moving parts.
Compatible with 1-3/4" standard doors (thicker doors available with 31- prefix) and E, F, J, or G rail options for door widths from 24" to 48". Installation requires proper stile sizing: 4-1/2" minimum with trim or 3-1/2" without trim. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting the right configuration and for pre-installation guidance from an authorized dealer.
Specifications
- Brand: Sargent

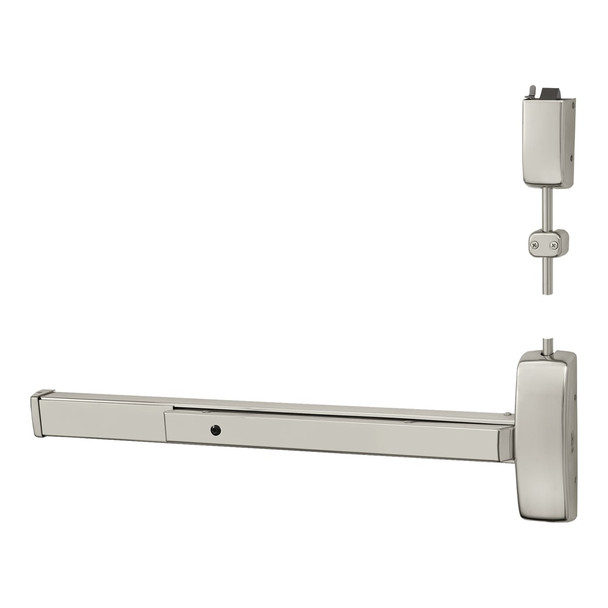

- Model: 19-NB8740F LHR 32D
- Series: 80 Series
- Configuration: Rim Exit Device
- Door Thickness: 1-3/4" (44mm) standard; thicker doors require 31- prefix
- Compatible Door Widths: 24-32" (E Rail, no cutting for 32"), 33-36" (F Rail, no cutting for 36"), 37-42" (J Rail), 43-48" (G Rail)
- Minimum Stile Width: 4-1/2" with trim; 3-1/2" without trim
- Door Types: Wood or metal
- Rating: ANSI/BHMA Grade 1
