Description

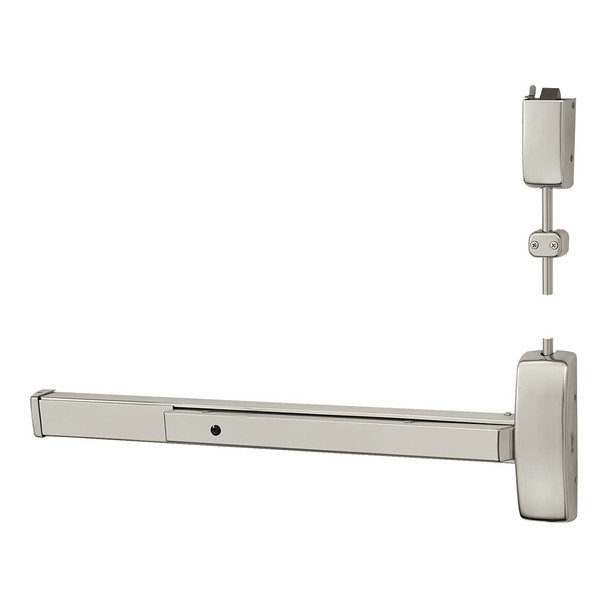

The Sargent 80 Series exit device is a heavy-duty panic bar designed for wood and metal doors in commercial and institutional buildings. Grade 1 certified for strength and cycle life, it solves security and life-safety needs with modular construction, minimal maintenance, and options for delayed egress, alarmed exit, or electric latch retraction.
This left-hand reverse (LHR) model fits 1-3/4" standard doors with E rail for 24-32" widths; specify thickness for doors over 1-3/4" up to 2-1/4". Requires 4-1/2" minimum stile with trim. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and product support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 19-NB8746F LHR 32D
- Series: 80 Series
- Configuration: Rim, left-hand reverse
- Door Thickness: 1-3/4" (44mm) standard
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61-81cm)
- No cutting required for 32" doors
- Minimum Stile: 4-1/2" with trim, 3-1/2" without trim
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, options for delayed egress, alarmed exit, electric latch retraction
