Description

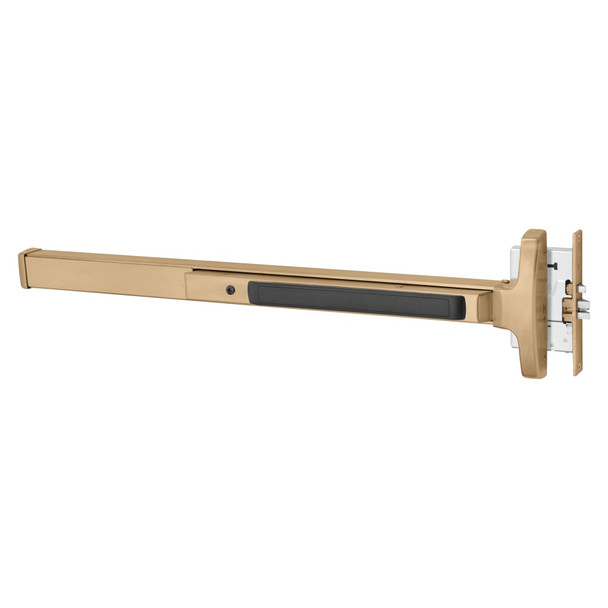

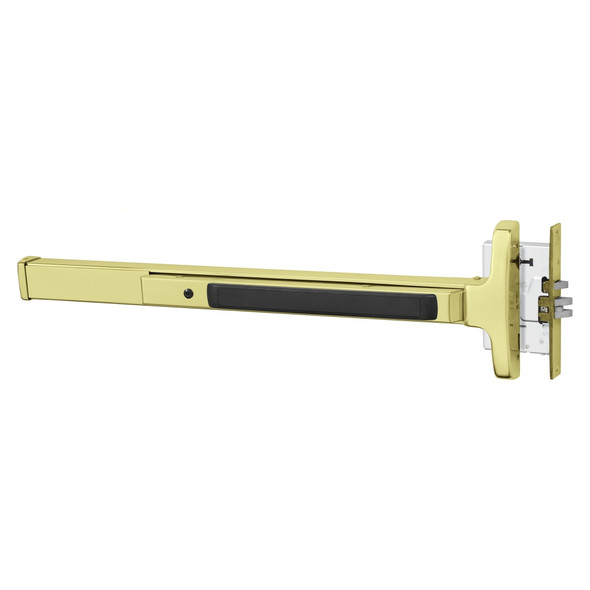

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood and metal doors in commercial and institutional buildings. Engineered for facilities requiring durability and security, it exceeds ANSI/BHMA Grade 1 standards with modular construction, minimal maintenance, and rim-mounted installation on right-hand reverse (RHR) openings.
This model fits 1-3/4 inch standard thickness doors with 4.5 inch minimum stile width and is available in multiple rail sizes (E, F, J, G) to accommodate doors from 24 to 48 inches wide without cutting. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for custom thickness specifications, delayed egress, alarmed, or electric latch retraction options tailored to your building's needs.
Specifications
- Model: 1943-8343J RHR 10
- Orientation: Right-Hand Reverse (RHR)
- Series: Sargent 80
- Door Thickness: 1-3/4 inch (44 mm)
- Minimum Stile Width: 4-1/2 inch (114 mm)
- Compatible Door Types: Wood or metal
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Standards: ANSI/BHMA Grade 1
- Installation: Rim-mounted
