Description

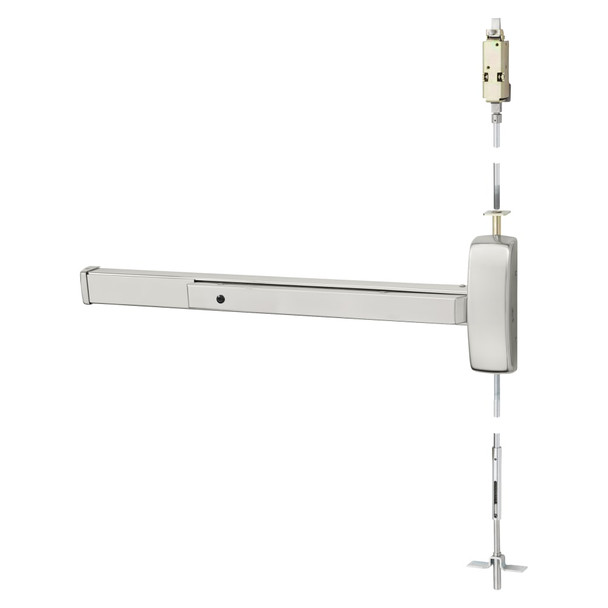

The Sargent 80 Series exit device is a Grade 1 certified panic hardware solution designed for metal doors requiring durable, maintenance-free security throughout the building's lifecycle. Ideal for commercial facilities, schools, and high-traffic environments, it solves the need for reliable emergency egress hardware that exceeds ANSI/BHMA standards while supporting fire-rated applications and accessibility requirements.
This right-hand reverse (RHR) model is compatible with 1-3/4" minimum thickness metal doors and available in multiple rail sizes (E, F, J, G) to fit door widths from 24" to 48". Electric options including alarm, delay egress, latch monitoring, and remote retraction are available. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for application assistance.
Specifications
- Brand: Sargent
- Model: 1943-MD8613G ETP RHR 32D
- Device Centerline: 41" (1041mm) standard, 38" (965mm) for accessibility
- Center Case Dimensions: 8-3/8" x 2-5/8"
- Pushbar Projection: 3" neutral, 2-1/8" depressed
- Maximum Door Height: 96"
- Stile Width: 4-1/2" minimum
- Door Thickness: 1-3/4" minimum to 2-1/4"
- Top Bolt: Stainless steel
- Dogging: Hex key standard
- Certification: ANSI/BHMA Grade 1, Fire-Rated
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Strike: 650 Top & 606 Bottom
