Description

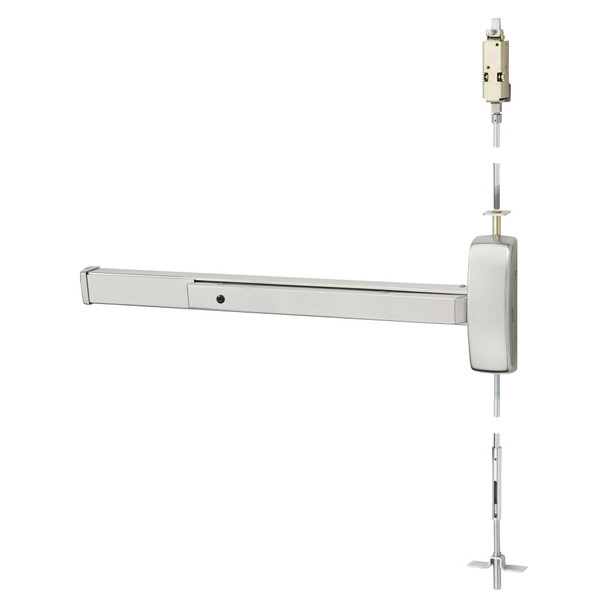

The Sargent 80 Series exit device is a heavy-duty panic hardware solution designed for commercial and institutional facilities requiring ANSI/BHMA Grade 1 certified security and reliability. Built with modular construction and minimal moving parts, it delivers maintenance-free operation and exceeds industry strength standards for metal doors 1.75 inches or thicker across rim, mortise, and vertical rod configurations.
This RHR model with 32D strike compatibility fits door widths 37 to 42 inches using the J rail (factory-cut to specification). Optional features include delayed egress, alarm, beacon, photoluminescent coating, and electric latch retraction. Contact our authorized dealer team at 1-877-207-6067 or sales@edlocks.com for sizing verification, rail selection, and electric option guidance.
Specifications
- Model: 1943-MD8615J
- Hand: RHR (Right Hand Reverse)
- Strike: 650 Top, 606 Bottom (panic and fire-rated)
- Rail Size: J (37-42 inch door widths)
- Door Thickness: 1.75 inch minimum
- Device Centerline: 41 inches from finished floor (standard)
- Center Case: 8.375 x 2.625 inches
- Pushbar Projection: 3 inches neutral, 2.125 inches depressed
- Certification: ANSI/BHMA Grade 1
- Dogging: Hex key standard (cylinder dogging available)
