Description

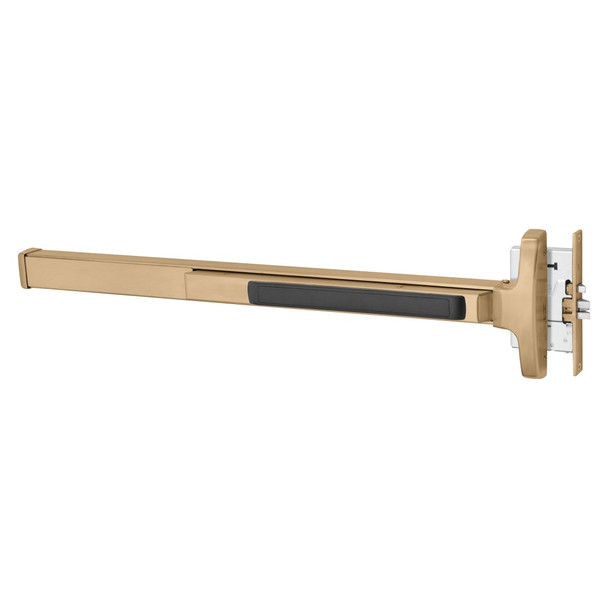

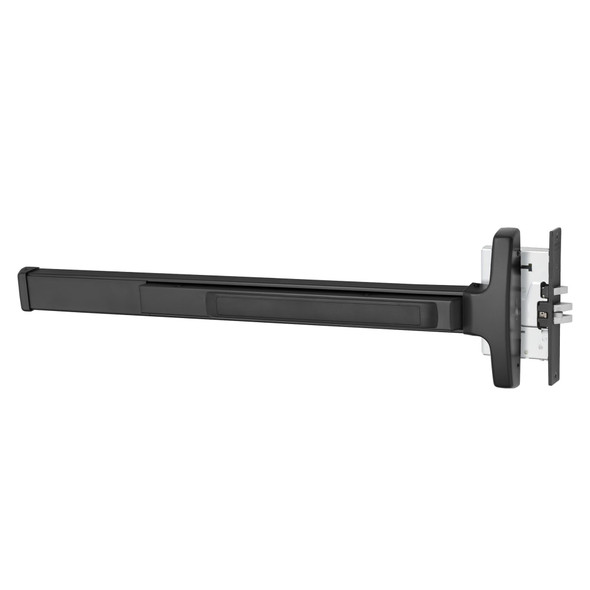

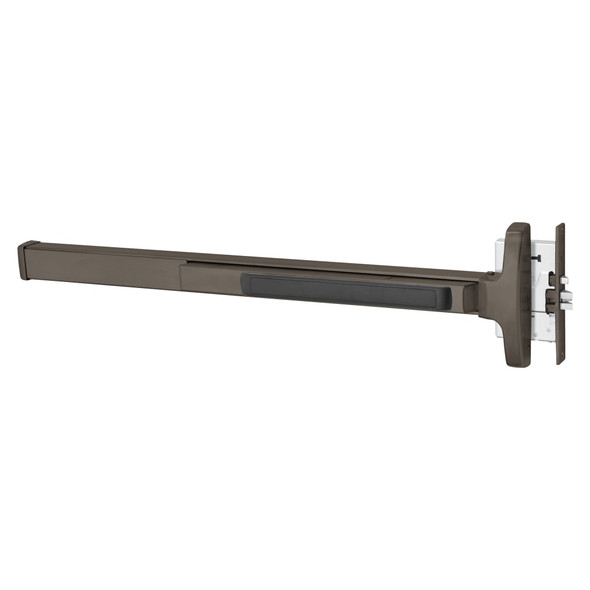

The Sargent 80 Series exit device is a heavy-duty panic bar built for high-traffic commercial and institutional doors. Ideal for facilities prioritizing life-safety compliance and durability, this rim-mounted device exceeds ANSI/BHMA Grade 1 standards for cycle strength and reliability. Its modular construction minimizes moving parts, reducing maintenance while maximizing security across wood and metal doors.
Designed for 1 3/4 inch thick doors with right-hand reverse (RHR) operation, this exit device suits door widths 24 to 48 inches depending on rail type (E, F, J, or G). Optional features include delayed egress, alarmed functionality, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for sizing and installation support.
Specifications
- Brand: Sargent
- Model: 80 Series 8343F
- Mounting: Rim
- Handing: Right-hand reverse (RHR)
- Door Thickness: 1 3/4 inch (44mm)
- Minimum Stile Width: 4 1/2 inch (114mm)
- Door Widths: 24 to 48 inches (rail dependent)
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed, electric latch retraction
