Description

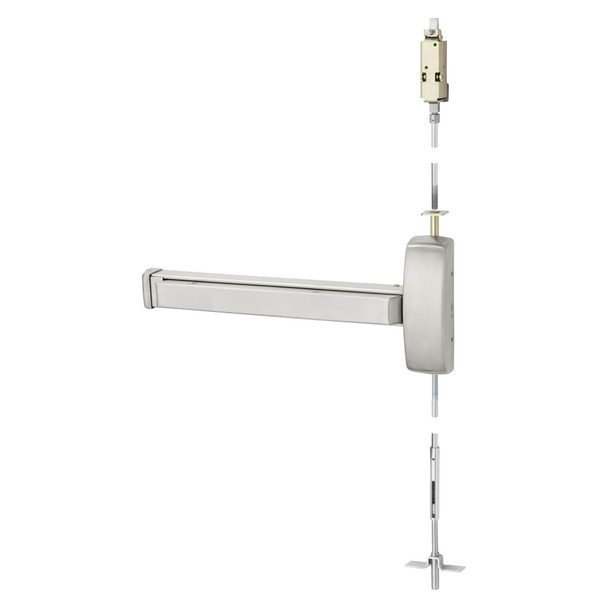

The Sargent 80 Series exit device is a Grade 1 rated panic bar for metal doors 1.75 inches or thicker. Built for facilities requiring durable, code-compliant egress hardware, it features modular construction, few moving parts, and maintenance-free operation across rim, mortise, and vertical rod configurations.
This ETF model with left-hand reverse and 32-inch door width includes a 650 top strike and 606 bottom strike (fire-rated compatible). Specify your door height and mounting needs when ordering. As an authorized Sargent dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure correct configuration for your application.
Specifications
- Model: 1956-WD8610E ETF LHR 32D
- Series: Sargent 80
- Configuration: Exit Device with Electrified Top and Fire Rated Latch
- Handedness: Left-Hand Reverse
- Rail Size: E Rail (24-32 inch door widths, no cutting required for 32 inch)
- Door Thickness: 1.75 inches minimum (up to 2.25 inches with specification)
- Door Height: Must be specified, 120 inches maximum
- Stile Width: 4.5 inches minimum
- Strikes: 650 Top Strike and 606 Bottom Strike
- Device Centerline Height: 41 inches from finished floor (38 inches for elementary schools with accessibility standards)
- Center Case: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches neutral, 2.125 inches depressed
- Dogging: Hex key dogging standard (non-fire-rated devices)
- Top Bolt: Stainless steel
- Mounting: Machine screws supplied
- Rating: ANSI/BHMA Grade 1
