Description

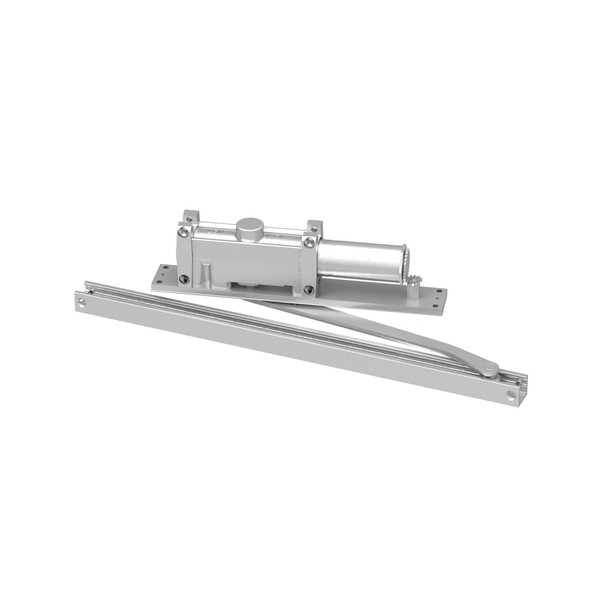

The LCN 2016-H is a heavy-duty concealed door closer designed for complete frame concealment on interior and exterior doors. Its single lever arm and roller assembly deliver smooth, quiet operation with cast iron construction and all-weather fluid. Built for aluminum, hollow metal, or wood doors up to 5'0" interior and 4'0" exterior, it solves the need for durable, invisible door control in high-traffic facilities.
This left-hand closer requires a minimum 4" x 4" tube frame and ships standard with arm, track, metal finish plate, and fastener packs. Choose from standard or custom powder coat finishes, with optional plated hardware and SRI primer for corrosive environments. As an authorized LCN dealer, E.D. Locks provides expert sizing and installation guidance at sales@edlocks.com or 1-877-207-6067.
Specifications
- Series: 2010
- Model: 2016-H LH 689
- Hand: Left Hand
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Minimum frame tube: 4" x 4"
- Compatible materials: Aluminum, hollow metal, wood
- Construction: Cast iron body
- Fluid: All-weather
- Finish options: Standard, custom powder coat, optional plated
- Additional options: SRI primer for corrosive conditions
