Description

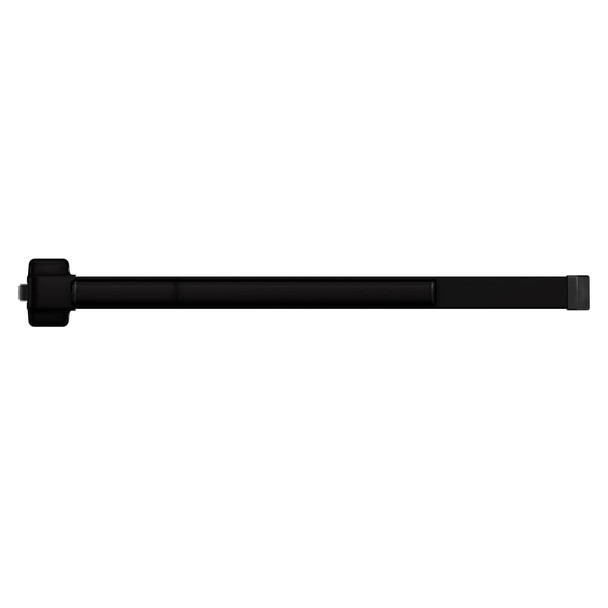

The Von Duprin 22EO-F is a UL-listed rim exit device engineered for single and double doors requiring ADA-compliant panic hardware. Certified to ANSI A156.3, 2008 Grade 1, it solves life-safety code requirements for commercial facilities, schools, hospitals, and high-traffic venues where reliable emergency egress is non-negotiable.
This non-handed device fits door stiles as narrow as 3 13/16" and installs on hollow metal doors with standard 161" cutouts. Available in 3' and 4' lengths with configurable functions (EO, DT, NL, TP, K, L), electric monitoring, and mechanical options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying, configuration assistance, and expert installation guidance.
Specifications
- Brand: Von Duprin
- Model: 22EO-F
- Grade: ANSI A156.3 2008 Grade 1
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Centerline from finished floor: 39 13/16" (1011 mm) standard, 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" x 1 3/8" x 2 3/8"
- Mechanism case dimensions: 2" x 3 3/4"
- Push bar projection neutral: 3 3/4", depressed: 3"
- Latch bolt: Deadlocking, 3/4" throw
- Minimum door stile width: 3 13/16"
- Compatible with hollow metal doors, 161" cutouts
- Standard hex key dogging
- Functions: EO, DT, NL, TP, K, L (ships ready for all)
- Electric options: LX latchbolt monitor, RX/RX2 pushpad monitor, ALK alarm kit, Allegion Connect
- Mechanical options: GBK glass bead kit, AX accessible device
- Dogging options: LD less dogging available
- Strike: 299 Dull Black available
- Non-handed
