Description

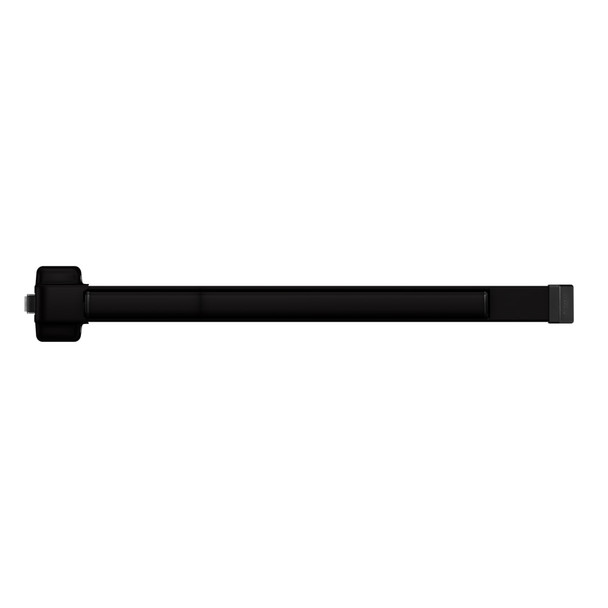

The Von Duprin 22NL-F 3 695 is a UL-listed panic exit device built for single and double doors with mullions. Grade 1 ANSI A156.3 certified, it solves life-safety code requirements for commercial buildings while fitting door stiles as narrow as 3 13/16 inches. Non-handed design works on any door orientation.
Ships ready in multiple functions (EO, DT, NL, TP, K, L) with available lengths of 3 feet or 4 feet. Compatible with hollow metal doors featuring 161-inch cutouts. E.D. Locks & Security, an authorized Von Duprin dealer, offers expert configuration assistance and strike options at sales@edlocks.com or 1-877-207-6067 to ensure correct installation and compliance.
Specifications
- Brand: Von Duprin
- Model: 22NL-F 3 695
- Device Type: Rim Exit Device
- Grade: ANSI A156.3 2008 Grade 1
- UL Listed: Panic Exit Hardware
- Non-Handed: Yes
- Minimum Door Stile Width: 3 13/16 inches (97 mm)
- Compatible Cutout: 161 inches
- Device Lengths: 3 feet (914 mm), 4 feet (1219 mm)
- Centerline from Floor: 39 13/16 inches (1011 mm) standard, 39 11/16 inches (1008 mm) with mullion
- Center Case Dimensions: 4 1/4 inch x 1 3/8 inch x 2 3/8 inch (108 mm x 41 mm x 60 mm)
- Mechanism Case Dimensions: 2 inch x 3 3/4 inch (51 mm x 95 mm)
- Push Bar Projection: 3 3/4 inches (95 mm) neutral, 3 inches (76 mm) depressed
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Wood and Metal Fasteners: 1 3/4 inch (44 mm) and 2 1/4 inch (57 mm) SNB included, optional sizes available
- Dogging: Hex key standard, LD (less dogging) option available
- Strike: 299 Dull Black included
- Available Functions: EO, DT, NL, TP, K, L
- Optional Electric: LX latchbolt monitor switch, RX pushpad monitor switch, RX2 double pushpad monitor switch, ALK alarm exit kit, CON Allegion Connect
- Optional Mechanical: GBK glass bead kit, AX accessible device
