Description

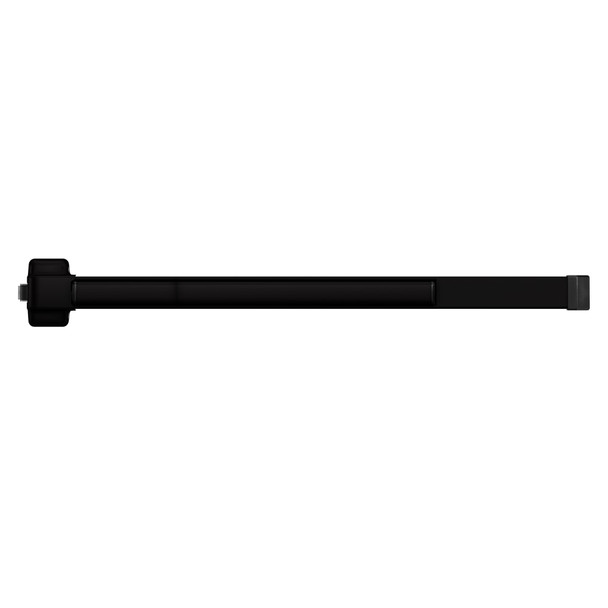

The Von Duprin 22TP-F 4 695 is a Grade 1 panic exit device designed for single and double doors with or without mullions. UL listed and ANSI A156.3 compliant, it solves life-safety requirements for commercial facilities by enabling quick emergency egress. Non-handed design fits door stiles as narrow as 3 13/16 inches and works with hollow metal doors featuring 161-inch cutouts.
Available in 3-foot and 4-foot lengths, this rim exit device ships ready for multiple functions including EO, DT, NL, TP, K, and L configurations. Optional electric monitoring, alarm kits, and mechanical accessories expand capabilities. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, function selection, and keying to ensure your installation meets code and your facility's specific needs.
Specifications
- Brand: Von Duprin
- Model: 22TP-F 4 695
- Grade: ANSI A156.3, 2008 Grade 1
- UL Listed: Panic Exit Hardware
- Non-handed: Yes
- Device Lengths: 3 feet (914 mm), 4 feet (1219 mm)
- Minimum Door Stile Width: 3 13/16 inches (97 mm)
- Hollow Metal Door Cutout: 161 inches
- Centerline Height: 39 13/16 inches (1011 mm) standard, 39 11/16 inches (1008 mm) with mullion
- Center Case Dimensions: 4 1/4 inches (108 mm) x 1 3/8 inches (41 mm) x 2 3/8 inches (60 mm)
- Mechanism Case Dimensions: 2 inches (51 mm) x 3 3/4 inches (95 mm)
- Push Bar Projection: 3 3/4 inches (95 mm) neutral, 3 inches (76 mm) depressed
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Fasteners: Includes 1 3/4 inch (44 mm) and 2 1/4 inch (57 mm) SNB for wood and metal doors
- Dogging: Hex key dogging standard
- Functions: EO, DT, NL, TP, K, L
- Electric Options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm exit kit, CON Allegion Connect
- Mechanical Options: GBK glass bead kit, AX accessible device
- Dogging Options: LD less dogging
- Strike: 299 Dull Black
