Description

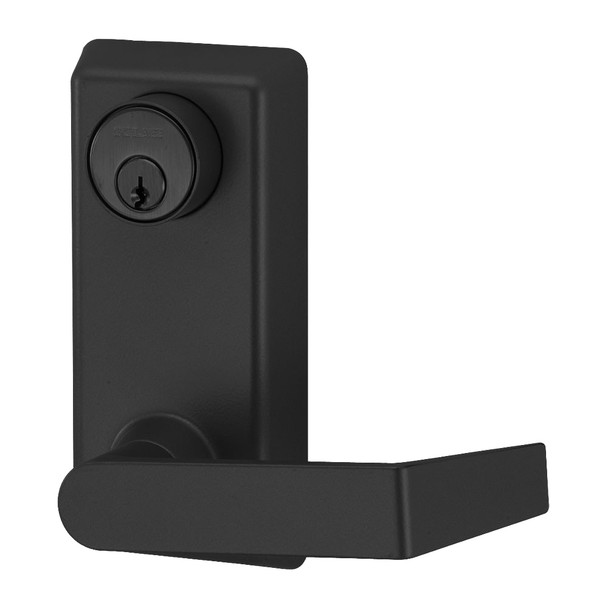

The Von Duprin 230L-06 622 LHR is a 22-inch rim exit device trim designed for single and double doors with mullion. UL listed for panic hardware and ANSI A156.3 Grade 1, it solves emergency egress requirements for commercial facilities while fitting door stiles as narrow as 3 13/16 inches. Non-handed design offers installation flexibility across multiple door types.
This device ships ready for multiple functions (EO, DT, NL, TP, K, L) and accommodates hollow metal doors with 161-inch cutouts in 3- or 4-foot lengths. Compatible with electric monitoring and mechanical options including glass bead kit and accessible device features. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration assistance and keying support. Contact sales@edlocks.com or 1-877-207-6067 for specification details and expert guidance.
Specifications
- Brand: Von Duprin
- Model: 230L-06 622 LHR
- Device Length: 3 feet (914 mm) or 4 feet (1219 mm)
- Centerline Height: 39 13/16 inches (1011 mm) or 39 11/16 inches (1008 mm) with mullion
- Minimum Door Stile Width: 3 13/16 inches (97 mm)
- Latch Bolt Throw: 3/4 inch (19 mm), deadlocking
- Center Case Dimensions: 4 1/4 inches x 1 3/8 inches x 2 3/8 inches
- Mechanism Case Dimensions: 2 inches x 3 3/4 inches
- Push Bar Projection: 3 3/4 inches neutral, 3 inches depressed
- Standard Functions: EO, DT, NL, TP, K, L
- Certification: UL Listed, ANSI A156.3 2008 Grade 1
- Dogging: Hex key standard, less dogging option available
- Electric Options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm kit, CON Allegion Connect
- Mechanical Options: GBK glass bead kit, AX accessible device
- Strike: 299 Dull Black
