Description

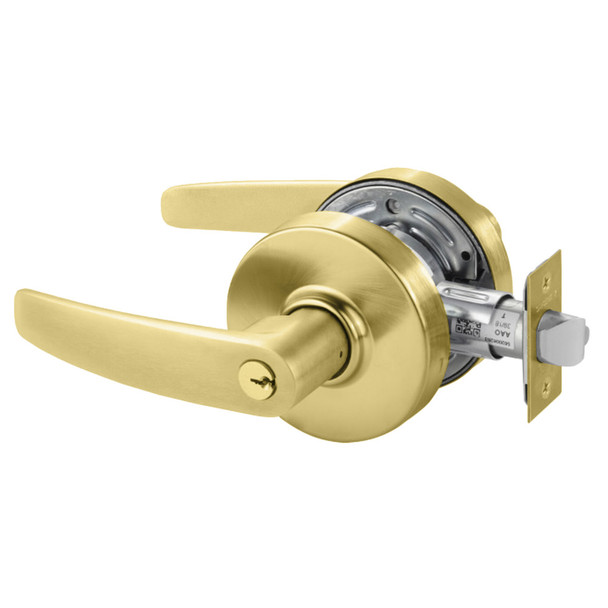

The Sargent 28-7G04 LB is a key-in-lever lock built for standard duty use in commercial interiors and exteriors across public buildings, medical offices, hotels, motels and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, providing reliable access control where professional-grade performance is essential.
This lock accommodates 1-3/4" standard or 1-3/8" thick doors with 2-3/4" or 2-3/8" backset options. Steel cylindrical housing with wrought brass or stainless steel front and strike, brass latch with 1/2" throw, and 6-pin LA keyway (masterkey capable). As an authorized dealer, E.D. Locks offers expert configuration guidance and keying support. Contact sales@edlocks.com or 1-877-207-6067 for application assistance.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: 2-1/4" x 1-1/8" standard; 2-1/4" x 1" optional
- Cylindrical Housing: Steel, zinc dichromate finish
- Front & Strike: Wrought brass or stainless steel
- Strike Options: 2-3/4" curved lip (standard), 4-7/8" curved lip, 2-1/4" full lip
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keying: Two nickel silver keys; master key and grand master key capable
- Lever Designs: Non-handed B, L, P; handed G, Y Coastal Series
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door Prep: ANSI A115.2; 160 prep optional
- Standards: ANSI/BHMA A156.2
