Description

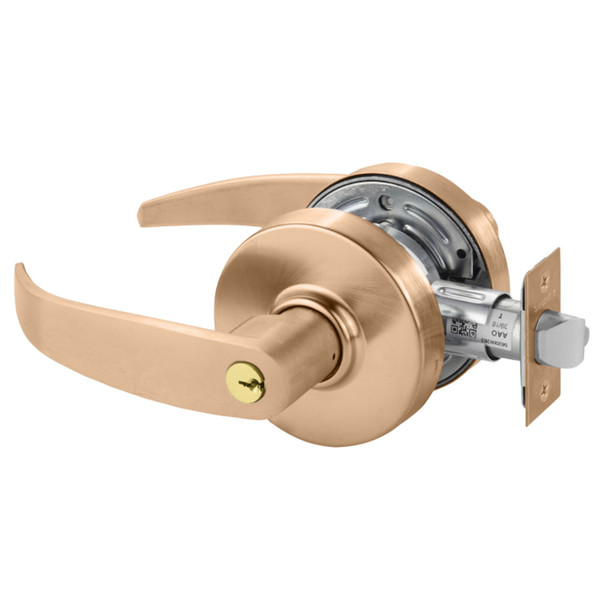

The Sargent 28-7G37 LP 10 is a key-in-lever lock built for standard-duty commercial use in public buildings, medical offices, hotels, motels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, offering reliable security and performance for interior and exterior doors in high-traffic environments.
This lock fits 1-3/4" thick doors with a standard 2-3/4" backset and comes with non-handed lever designs (B, L, P) and handed options (G, Y). It includes a brass 6-pin cylinder with LA keyway, master keying capability, and two nickel silver keys. For installation help, compatibility verification, or custom keying, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 28-7G37 LP 10
- Lock Type: Key-in-lever cylindrical
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: Wrought brass or stainless steel, 2-1/4" x 1-1/8" standard
- Housing: Steel with zinc dichromate finish
- Latch: Brass, 1/2" throw
- Cylinder: Brass 6-pin, LA keyway
- Keys: Two nickel silver
- Master Keying: Yes
- Lever Designs: Non-handed (B, L, P) and handed (G, Y)
- Strike Options: 2-3/4" curved lip standard, 4-7/8" curved lip, 2-1/4" full lip
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Standards: ANSI/BHMA A156.2, ANSI A115.2
