Description

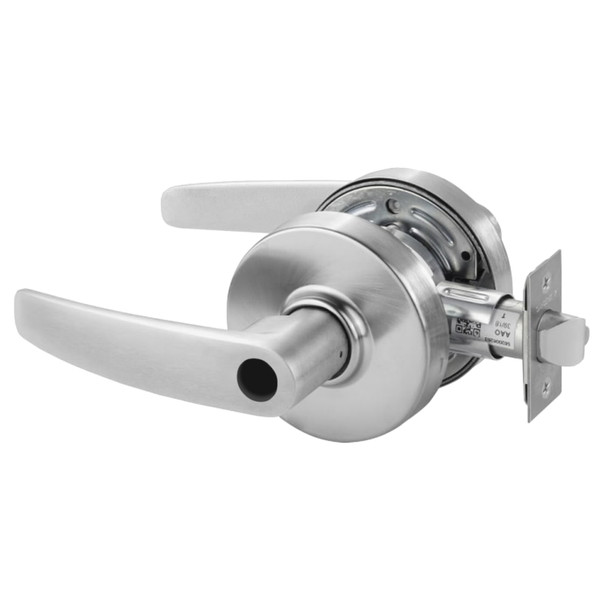

The Sargent 2830 is a key-in-lever lock engineered for standard-duty commercial applications in hospitals, hotels, government buildings, and public facilities. It exceeds ANSI/BHMA A156.2 durability standards and suits both interior and exterior doors, making it ideal for high-traffic environments requiring reliable keyed access control.
This lock accommodates 1-3/4" standard or 1-3/8" thick doors with a 2-3/4" backset (2-3/8" optional). It ships keyed with two nickel silver keys and features a 6-pin, master-key-capable cylinder. Verify your door thickness, backset, and lever style before ordering. As an authorized Sargent dealer, E.D. Locks provides expert pre-sale guidance at sales@edlocks.com or 1-877-207-6067 to ensure correct configuration.
Specifications
- Brand: Sargent
- Model: 2830-7G04
- Finish: 26D (Satin Chrome)
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: 2-1/4" x 1-1/8" (57mm x 29mm)
- Strike: 2-3/4" curved lip standard; 4-7/8" curved lip or 2-1/4" full lip optional
- Housing: Steel, zinc dichromate
- Latch: Brass, 1/2" (13mm) throw
- Cylinder: Brass, 6-pin, LA keyway, master-key capable
- Keys Included: Two nickel silver
- Lever Designs: Non-handed (B, L, P); handed (G, Y coastal series)
- ANSI Standard: A115.2; 160 prep optional
- Certification: Exceeds ANSI/BHMA A156.2
