Description

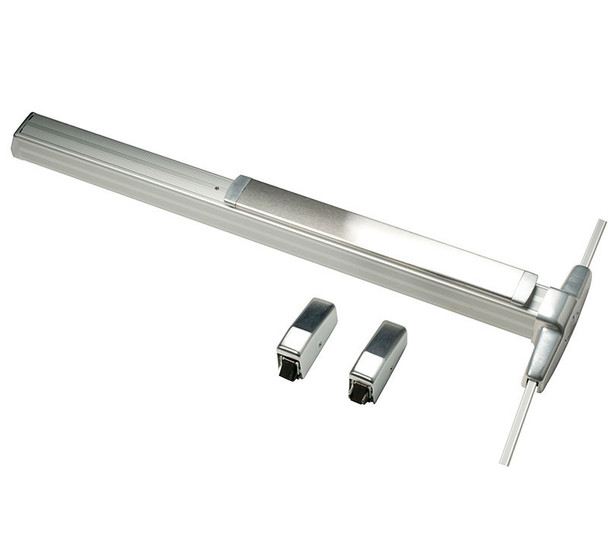

The Von Duprin 3327AL-05 is a UL-listed panic exit device designed for single and double doors in commercial buildings. Built to ANSI A156.3-2008 Grade 1 standards, this surface-mounted vertical rod device features a grooved mechanism case and deadlocking anti-friction latch bolts. Ideal for code-compliant emergency egress on doors up to 7 feet tall.
This left-hand reverse (LHR) configuration works with standard door widths from 2'8" to 4'. Installation requires proper alignment with your door frame and undercut specifications. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on sizing, keying options, and rod extensions for taller doors. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Von Duprin
- Model: 3327AL-05 3 313 LHR
- Device Type: Surface Vertical Rod Exit Device
- Grade: ANSI A156.3-2008 Grade 1
- Case Style: Grooved mechanism case
- Hand: Left-hand reverse (LHR)
- Device centerline from floor: 39 13/16 inches (1006 mm)
- Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208 x 62 x 40 mm)
- Mechanism case: 2 1/4" x 2 1/4" (57 x 57 mm)
- Pushbar neutral projection: 3 13/16" (97 mm)
- Pushbar depressed projection: 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top and bottom, 5/8" (16 mm) throw
- Door undercut: 1/4" (7 mm)
- Top and bottom latch dimensions: 4 1/2" x 2 1/8" x 1 1/2" (114 x 54 x 38 mm)
- Vertical rods: 1/2" square tubing, standard accommodate 7-foot doors
- Top rod length: 34 15/16" (887 mm)
- Bottom rod length: 31 1/4" (794 mm)
- Extension rods available: 1 foot (205 mm) or 3 feet (914 mm) for doors over 7 feet
- One-piece top rod available for 8-10 foot doors
- Compatible door widths: 2'8" to 4' (813 mm to 1219 mm)
- Fasteners: #425 SNB for end case, #325 SNB for EO devices and latches
