Description

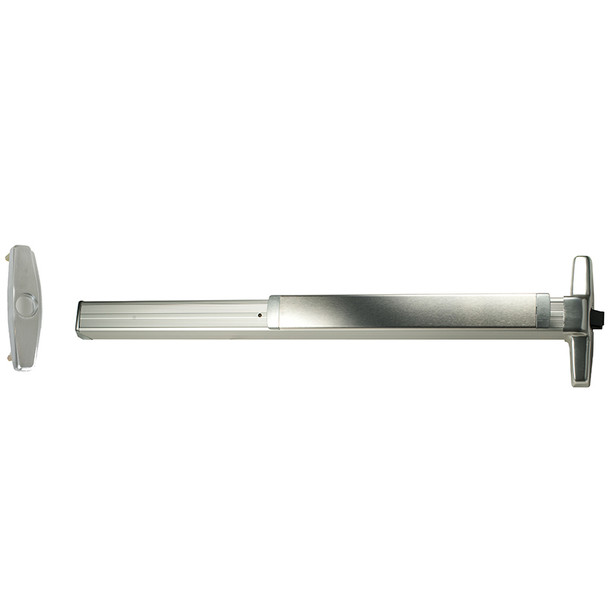

The Von Duprin 33ANL-OP 3 is a UL-listed panic exit device engineered for single and double doors with mullion. Grade 1 ANSI A156.3 certified, it provides reliable emergency egress for commercial buildings. The grooved mechanism case design meets life safety codes and suits facilities requiring durable, accessible exit hardware.
This non-handed rim device installs on wood and metal doors from 2'4" to 4' in width, with optional electric latch retraction, monitor switches, and dogging features available. As an authorized Von Duprin dealer, E.D. Locks offers expert configuration guidance and fast shipping. Contact our team at sales@edlocks.com or 1-877-207-6067 for application-specific recommendations and free shipping on orders over $450.
Specifications
- Model: 33ANL-OP 3 US28
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed for panic exit hardware
- Device Lengths: 3' (711-914mm) or 4' (864-1219mm) door sizes
- Latch Bolt: Deadlocking, 3/4" throw
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Device Centerline: 39 13/16" from finished floor
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Dogging: Hex key standard; cylinder or less-dogging options
- Electric Options: Latchbolt monitor, pushpad monitor, signal switch, electric latch retraction
- Finish: US28 (Satin Aluminum)
