Description

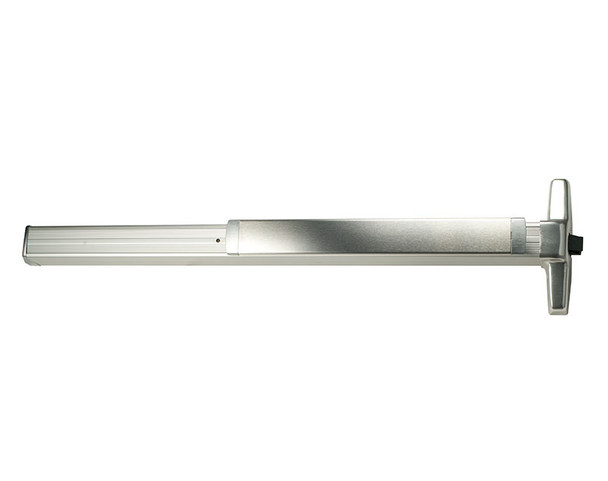

The Von Duprin 33ANL-OP is a UL-listed panic exit device designed for single and double doors with mullion. Built to ANSI A156.3 2014 Grade 1 standards, it provides reliable emergency egress for commercial buildings, healthcare facilities, and high-traffic environments where code-compliant panic hardware is required.
This rim-mounted device suits both wood and metal doors and includes a deadlocking latchbolt with dogging capability. Compatible with electric latch retraction, monitor switches, and alarm kits for integrated building security. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on door preparation, finish selection, and installation support.
Specifications
- Brand: Von Duprin
- Model: 33ANL-OP 4 313
- UL Listed for Panic Exit Hardware
- ANSI A156.3 2014 Grade 1
- Device Lengths: 3' (711-914 mm) and 4' (864-1219 mm)
- Latchbolt: Deadlocking, 3/4" throw
- Centerline Height: 39 13/16" from finished floor
- Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Standard Fasteners: Sex bolts for wood and metal doors
- Dogging: Hex key dogging standard
- Compatible Options: Cylinder dogging, electric latch retraction, monitor switches, signal switch, alarm exit kit, pneumatic latch retraction, glass bead kit
