Description

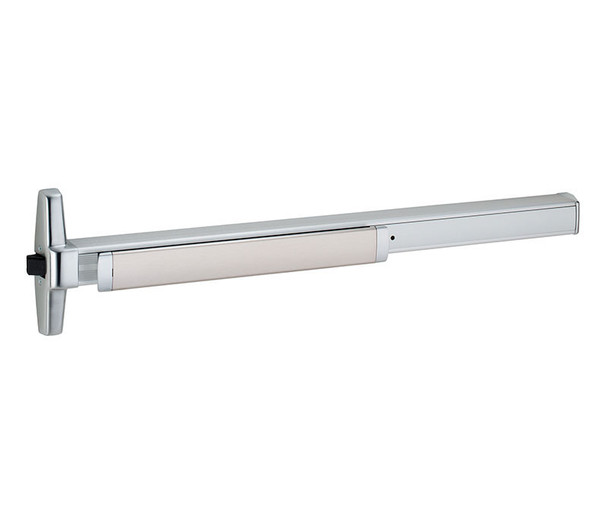

The Von Duprin 35A-DT is a heavy-duty panic exit device designed for single and double doors. UL-listed and ANSI A156.3 Grade 1 certified, it features a smooth mechanism case and non-handed rim design ideal for high-traffic commercial facilities requiring reliable emergency egress hardware.
This 3-foot device fits door stiles as narrow as 1 3/4 inches and includes hex key dogging as standard. Compatible with wood and metal doors, it ships with appropriate fasteners for your application. As an authorized Von Duprin dealer, E.D. Locks provides expert support and product guidance. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for compatibility questions or custom configurations.
Specifications
- Brand: Von Duprin
- Model: 35A-DT 3
- Finish: 26D
- Length: 3 feet (711-914 mm)
- Grade: ANSI A156.3-2001 Grade 1
- Case Type: Smooth mechanism case
- Handed: Non-handed (except with Signal Switch option)
- Minimum Door Stile Width: 1 3/4 inches
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Latch Bolt: Deadlocking, 3/4" throw
- Pushbar Projection (Neutral): 3 13/16"
- Pushbar Projection (Depressed): 3 1/16"
- Dogging: Hex key standard
- UL Listed for Panic Exit Hardware
