Description

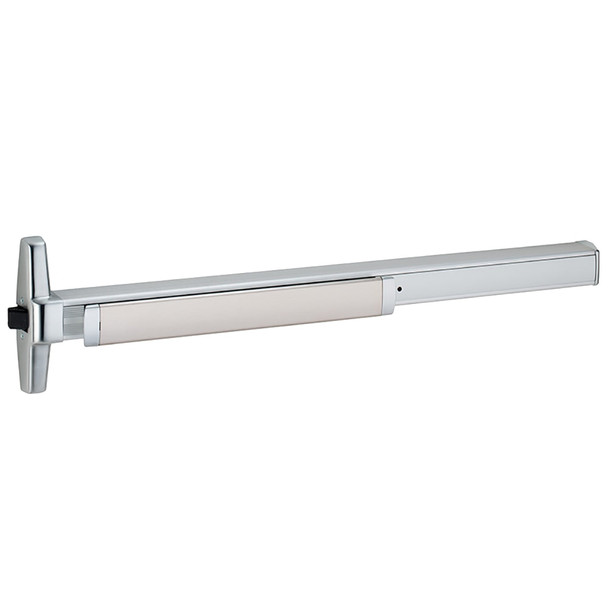

The Von Duprin 35A-EO is a UL-listed panic exit device designed for single and double doors with or without mullions. Built to ANSI A156.3 Grade 1 standards, this rim-mounted exit-only device features a smooth mechanism case and deadlocking latch bolt, making it ideal for commercial and institutional facilities requiring reliable emergency egress hardware.
The 35A-EO accommodates door stiles as narrow as 1 3/4 inches and includes hex key dogging as standard. Compatible with wood and metal doors, installation requires standard sex bolts. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on proper mounting, finish selection, and compliance. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support and to confirm compatibility with your door assembly.
Specifications
- Brand: Von Duprin
- Model: 35A-EO 3
- Finish: 26DAM (see Von Duprin finishes chart)
- Device Length: 3 feet
- Door Width Range: 2 feet 4 inches to 3 feet
- Minimum Door Stile Width: 1 3/4 inches
- Center Case Dimensions: 8 3/16 inches x 1 9/16 inches x 2 13/32 inches
- Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches
- Latch Bolt: Deadlocking, 3/4 inch throw
- Pushbar Projection (Neutral): 3 13/16 inches
- Pushbar Projection (Depressed): 3 1/16 inches
- Mounting Height: 39 13/16 inches from finished floor
- Standard Features: Hex key dogging, non-handed (except with SS option)
- Certification: UL listed, ANSI A156.3-2001 Grade 1
