Description

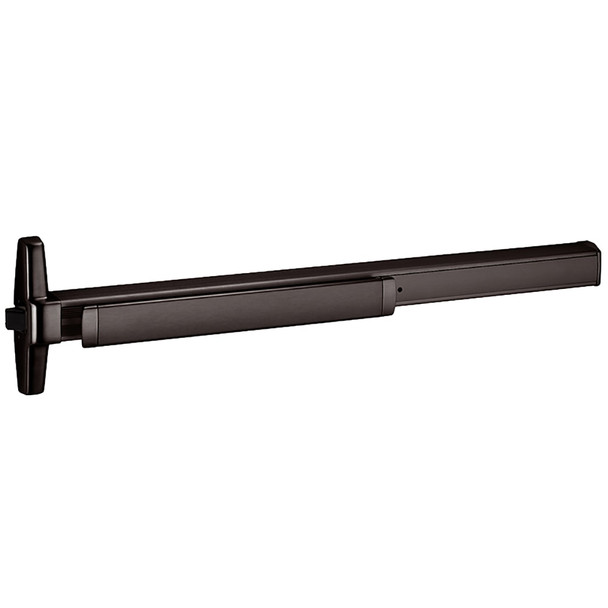

The Von Duprin 35A-EO is a UL-listed panic exit device engineered for single and double doors with mullions. Designed for facilities managers and security professionals, this Grade 1 ANSI A156.3-2001 certified hardware eliminates unsafe exit delays and meets life safety codes. Its smooth mechanism case and non-handed rim design simplify installation across varied door configurations.
Fits door stiles as narrow as 1 3/4" and accommodates doors from 2'4" to 3' in length. The 35A-EO includes hex key dogging and deadlocking latch bolt for controlled egress. As an authorized Von Duprin dealer, E.D. Locks provides expert specification guidance and technical support. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility confirmation and finish selection help.
Specifications
- Brand: Von Duprin
- Model: 35A-EO 3 313
- Device Length: 3' (711mm to 914mm)
- Grade: ANSI A156.3-2001 Grade 1
- UL Listed: Yes, Panic Exit Hardware
- Mechanism Case: Smooth finish
- Minimum Door Stile Width: 1 3/4"
- Latch Bolt: Deadlocking, 3/4" throw
- Pushbar Neutral Projection: 3 13/16"
- Pushbar Depressed Projection: 3 1/16"
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Mounting: Standard SNB fasteners for wood and metal doors
- Dogging: Hex key standard
- Handed: Non-handed (except with Signal Switch option)
