Description

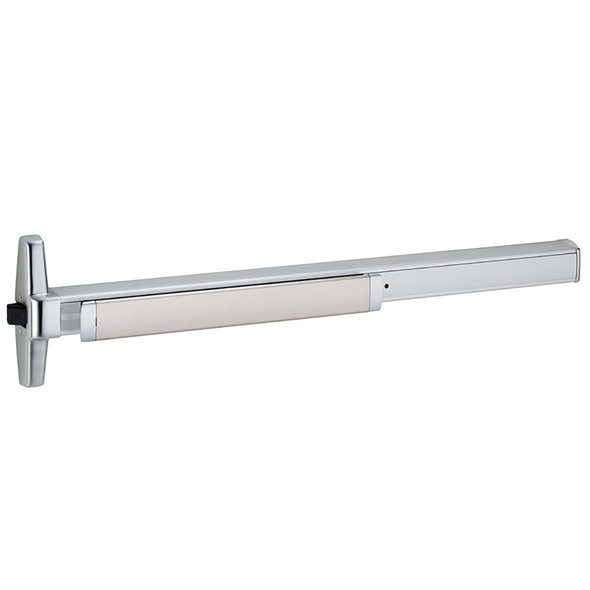

The Von Duprin 35A-EO is a UL-listed panic exit device engineered for single and double doors. Built to ANSI A156.3 Grade 1 standards, it features a smooth mechanism case, deadlocking latch bolt, and hex key dogging. Ideal for commercial facilities requiring reliable emergency egress hardware that meets code and safety requirements.
This rim-mounted device fits door stiles as narrow as 1 3/4 inches and accommodates standard door widths from 2 feet 4 inches to 4 feet. Installation requires proper alignment and fastening per manufacturer guidelines. As an authorized Von Duprin dealer, E.D. Locks provides expert support and product verification. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or installation assistance.
Specifications
- Brand: Von Duprin
- Model: 35A-EO 3 US28
- Grade: ANSI A156.3 Grade 1
- Device Type: Rim panic exit device (exit only)
- Mechanism Case: Smooth finish, 8 3/16 inch x 1 9/16 inch x 2 13/32 inch
- Latch Bolt: Deadlocking, 3/4 inch throw
- Pushbar Neutral Projection: 3 13/16 inches
- Pushbar Depressed Projection: 3 1/16 inches
- Minimum Door Stile Width: 1 3/4 inches
- Compatible Door Widths: 2 feet 4 inches to 4 feet
- Device Centerline from Finished Floor: 39 13/16 inches (with mullion: 39 11/16 inches)
- Dogging: Hex key standard
- Fasteners: SNB (sex bolts) 1 3/4 inch to 2 1/4 inch included for wood and metal doors
- UL Listed: Yes
