Description

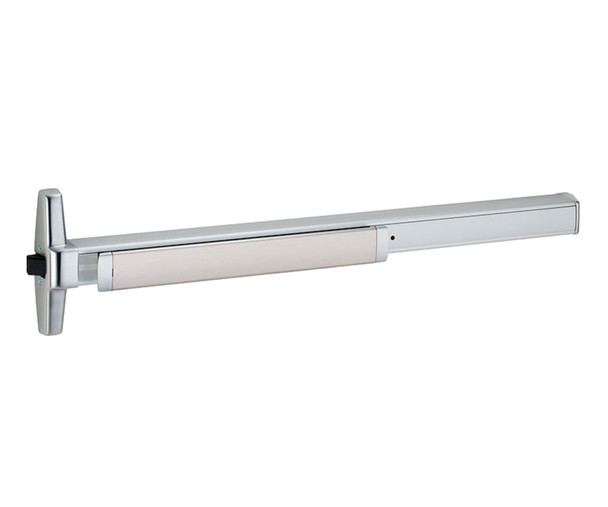

The Von Duprin 35A-L-03 is a UL-listed panic exit device designed for single and double doors with mullions. Built to ANSI A156.3-2001 Grade 1 standards, it features a smooth mechanism case and deadlocking latch bolt for secure emergency egress on doors as narrow as 1 3/4 inches. Ideal for commercial buildings, schools, hospitals, and any facility requiring code-compliant emergency exit hardware.
This rim-mounted device fits standard door stiles and includes hex key dogging as standard. Verify door width and mullion compatibility before ordering. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on selection, installation, and keying. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical assistance and to confirm your specific door configuration requirements.
Specifications
- Brand: Von Duprin
- Model: 35A-L-03 4 US28 LHR
- Type: Panic Exit Device (Rim-mounted)
- Grade: ANSI A156.3-2001 Grade 1
- UL Listed: Yes
- Mechanism Case: Smooth finish
- Minimum Door Stile Width: 1 3/4 inch
- Device Length Range: 2 feet 4 inches to 3 feet, and 2 feet 10 inches to 4 feet
- Centerline Height from Finished Floor: 39 13/16 inch (1011 mm)
- Centerline Height with Mullion: 39 11/16 inch (1008 mm)
- Center Case Dimensions: 8 3/16 inch x 1 9/16 inch x 2 13/32 inch (208 mm x 40 mm x 62 mm)
- Mechanism Case Dimensions: 2 1/4 inch x 2 1/4 inch (57 mm x 57 mm)
- Pushbar Neutral Projection: 3 13/16 inch (97 mm)
- Pushbar Depressed Projection: 3 1/16 inch (78 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Dogging: Hex key standard
- Handed: Non-handed (except with Signal Switch option)
- Fasteners: #425 SNB (1 3/4 inch to 2 1/4 inch) included for standard end case; #325 SNB for exit-only device
- Compatible Doors: Single and double doors with mullion
