Description

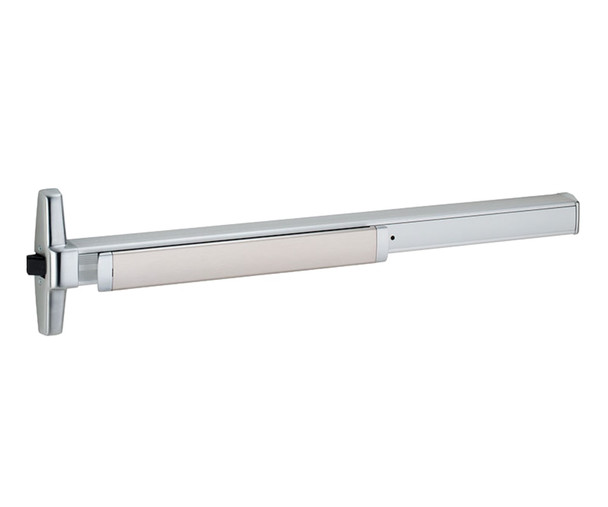

The Von Duprin 35A-L-05 is a Grade 1 panic exit device designed for single and double doors with mullion construction. UL listed and ANSI A156.3-2001 compliant, it features a smooth mechanism case and deadlocking latch bolt for secure egress control. Ideal for commercial buildings, hospitals, schools, and other facilities requiring reliable emergency exit hardware.
This rim-mounted device fits door stiles as narrow as 1 3/4 inches and accommodates standard door widths. Installation requires proper alignment with your door frame and finish selection (US28 satin stainless steel specified). For keying options, mullion compatibility, and dogging configuration assistance, contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067. We provide authorized dealer support and free shipping on orders over $450.
Specifications
- Model: 35A-L-05 4 US28 RHR
- Brand: Von Duprin
- Grade: ANSI A156.3-2001 Grade 1
- Finish: US28 (Satin Stainless Steel)
- Device Centerline Height: 39 13/16 inches (1011 mm)
- Device Length: 2 feet 4 inches to 3 feet (711-914 mm)
- Door Width Accommodation: 2 feet 10 inches to 4 feet (864-1219 mm)
- Minimum Door Stile Width: 1 3/4 inches
- Center Case Dimensions: 8 3/16 x 1 9/16 x 2 13/32 inches (208 x 40 x 62 mm)
- Mechanism Case Dimensions: 2 1/4 x 2 1/4 inches (57 x 57 mm)
- Pushbar Neutral Projection: 3 13/16 inches (97 mm)
- Pushbar Depressed Projection: 3 1/16 inches (78 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Dogging: Hex key standard
- Handed: Non-handed (except with Signal Switch option)
- UL Listed for Panic Exit Hardware
