Description

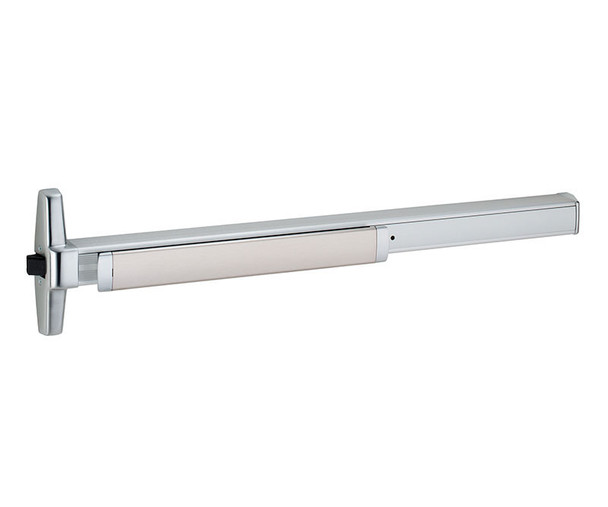

The Von Duprin 35A-L-17 is a Grade 1 panic exit device designed for single and double doors with mullion. This UL-listed hardware meets ANSI A156.3-2001 standards and features a smooth mechanism case, hex key dogging, and a deadlocking latch bolt with 3/4 inch throw. Ideal for commercial buildings requiring reliable emergency egress.
This left-hand reverse (LHR) device fits door stiles as narrow as 1 3/4 inches and accommodates doors 2 feet 4 inches to 4 feet wide. Includes sex bolts for wood and metal doors. For proper installation, keying, and finish selection, contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for personalized guidance.
Specifications
- Brand: Von Duprin
- Model: 35A-L-17 3 26D LHR
- Standard: ANSI A156.3-2001 Grade 1, UL Listed
- Device Length: 3 feet (711 mm to 914 mm)
- Door Size: 4 feet (864 mm to 1219 mm)
- Minimum Door Stile Width: 1 3/4 inches
- Device Centerline from Finished Floor: 39 13/16 inches (1011 mm)
- Center Case Dimensions: 8 3/16 inch x 1 9/16 inch x 2 13/32 inch (208 mm x 40 mm x 62 mm)
- Mechanism Case Dimensions: 2 1/4 inch x 2 1/4 inch (57 mm x 57 mm)
- Pushbar Neutral Projection: 3 13/16 inches (97 mm)
- Pushbar Depressed Projection: 3 1/16 inches (78 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Dogging: Hex Key Standard
- Orientation: Left-Hand Reverse (LHR)
- Fasteners: Includes 1 3/4 inch to 2 1/4 inch sex bolts for wood and metal doors
