Description

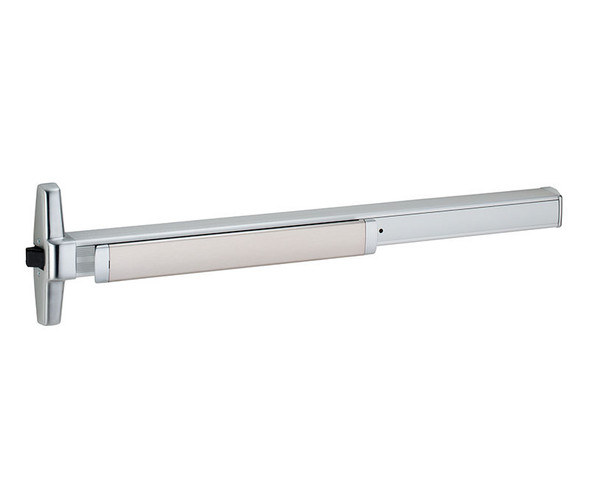

The Von Duprin 35A-L-DT-05 is a Grade 1 panic exit device engineered for single and double doors with mullions. Built to ANSI A156.3-2001 standards and UL-listed for panic hardware, it features a smooth mechanism case and deadlocking latch bolt. Ideal for commercial facilities requiring reliable emergency egress on narrow door stiles down to 1 3/4 inches.
This left-hand reverse (LHR) device is non-handed except when equipped with optional signal switches. Installation fits standard door frames with centerline 39 13/16 inches from finished floor. Hex key dogging comes standard. For proper sizing, compatibility verification, and expert installation guidance, contact E.D. Locks as an authorized Von Duprin dealer at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Von Duprin
- Model: 35A-L-DT-05
- Finish: 26D (Satin Chrome)
- Handing: LHR (Left Hand Reverse)
- Grade: ANSI A156.3-2001 Grade 1
- UL Listed: Panic Exit Hardware
- Device Length Range: 2 feet 4 inches to 3 feet and 2 feet 10 inches to 4 feet
- Minimum Door Stile Width: 1 3/4 inches
- Device Centerline Height: 39 13/16 inches (1011 mm) or 39 11/16 inches (1008 mm) with mullion
- Center Case Dimensions: 8 3/16 inches x 1 9/16 inches x 2 13/32 inches
- Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches
- Pushbar Projection (Neutral): 3 13/16 inches
- Pushbar Projection (Depressed): 3 1/16 inches
- Latch Bolt: Deadlocking, 3/4 inch throw
- Dogging: Hex key standard
