Description

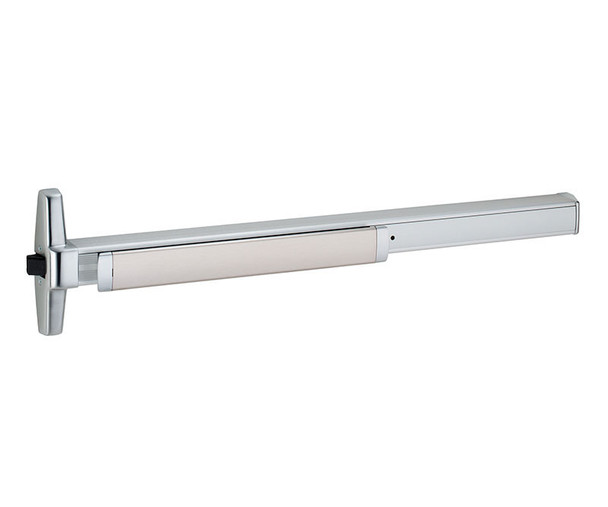

The Von Duprin 35A-TL is a UL-listed panic exit device designed for single and double doors with mullions. Built to ANSI A156.3-2001 Grade 1 standards, this rim-mounted hardware features a smooth mechanism case and non-handed design, making it ideal for high-traffic commercial entrances and emergency egress applications.
This device fits door stiles as narrow as 1 3/4 inches and includes hex key dogging as standard. Compatible with both wood and metal doors, the 35A-TL accommodates door widths from 2 feet 4 inches to 4 feet. Our authorized dealer team at E.D. Locks & Security can assist with proper sizing, finish selection, and installation guidance. Contact sales@edlocks.com or call 1-877-207-6067 for expert support.
Specifications
- Model: 35A-TL 4 US28
- Brand: Von Duprin
- Grade: ANSI A156.3-2001 Grade 1
- UL Listed: Panic Exit Hardware
- Non-handed (except with Signal Switch option)
- Minimum door stile width: 1 3/4 inches
- Device length range: 2 feet 4 inches to 4 feet
- Centerline height from finished floor: 39 13/16 inches (with mullion: 39 11/16 inches)
- Center case dimensions: 8 3/16 inches x 1 9/16 inches x 2 13/32 inches
- Mechanism case dimensions: 2 1/4 inches x 2 1/4 inches
- Pushbar neutral projection: 3 13/16 inches
- Pushbar depressed projection: 3 1/16 inches
- Deadlocking latch bolt: 3/4 inch throw
- Standard fasteners: #425 SNB (1 3/4 inch to 2 1/4 inch) for wood and metal doors
- Dogging: Hex key standard
