Description

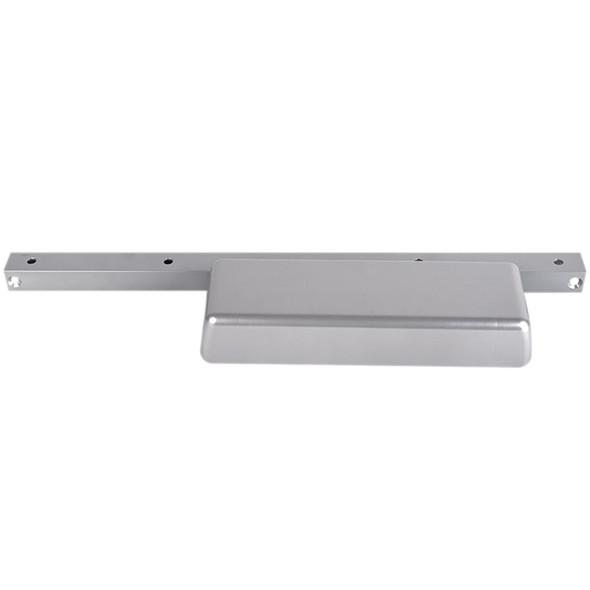

The LCN 4004T is a heavy-duty door closer engineered to reliably control fire and smoke barrier doors with up to 90-degree swing capability. Ideal for commercial buildings, healthcare facilities, and high-traffic environments, it prevents uncontrolled door movement and maintains code compliance on critical safety doors.
Compatible with SEM7850 wall magnets and sized for doors 3 or 4, this non-handed closer installs on most standard frames. Grade 1 certified (ANSI A156.4, UL 10C, ADA) with a 30-year warranty. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing verification and expert installation guidance.
Specifications
- Brand: LCN
- Model: 4004T-STD
- Finish: Dark Bronze (DKBRZ)
- Maximum Swing: 90 degrees
- Size: 3 or 4
- Handing: Non-Handed
- Body Construction: Cast Iron
- Piston Diameter: 1-1/2 inch
- Pinion Journal Diameter: 3/4 inch
- Bearing: Full Complement
- Fluid Type: All Weather
- Certifications: Grade 1 ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, BAA Compliant
- Warranty: 30 years
