Description

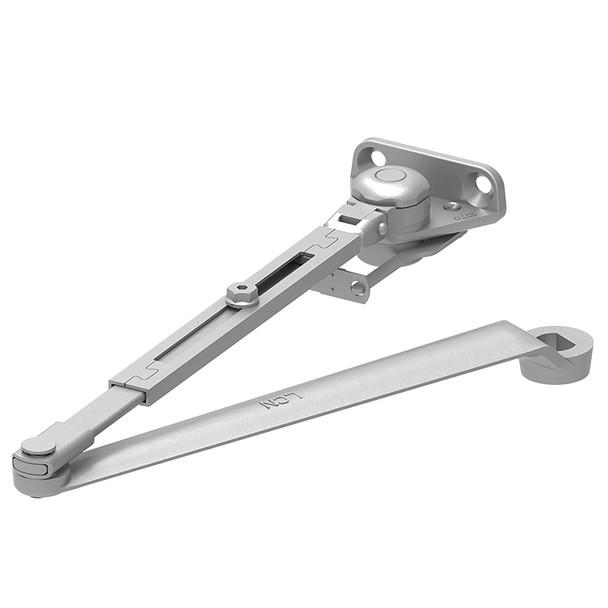

The LCN 4020-3049FL RH is a right-hand fusible link door closer arm designed for standard 4020 series closers. Built from aluminum, this arm is ideal for facilities requiring fire-safety compliance on self-closing doors up to 5'0" (interior) or 4'0" (exterior). It replaces the regular arm and includes self-reaming and tapping screws for installation.
This arm is compatible with sized cylinder 4020 series closers mounted on the top jamb (push side). The 4020 series meets UL, cUL, and ANSI A156.4 Grade One standards. Optional powder coat or plated finishes and SRI primer for corrosive environments are available. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish selection and installation requirements.
Specifications
- Brand: LCN
- Model: 4020-3049FL RH
- Arm Type: Fusible Link
- Material: Aluminum
- Handedness: Right Hand
- Max Door Height (Interior): 5'0"
- Max Door Height (Exterior): 4'0"
- Mount Location: Top Jamb (Push Side)
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Includes: Self-reaming and tapping screws
- Optional Finishes: Standard powder coat, plated finish, SRI primer
