Description

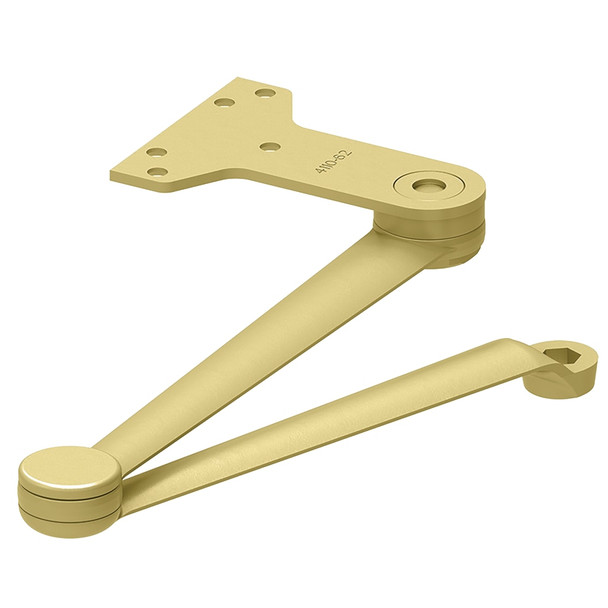

The LCN 4040XP-3049EDA is a heavy-duty door closer arm engineered for high-traffic institutional and commercial applications. It features a 44% increased bearing load capacity, a 3/4" journal diameter pinion, and a 5/8" wide bearing, making it ideal for facilities demanding superior durability and reliability in demanding environments.
This closer mounts on hinge side, top jamb, or parallel arm positions on right or left swinging doors and fits interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed under ANSI A156.4 Grade One, it includes LCN Fast Power Adjust for quick setup. As an authorized dealer, E.D. Locks provides expert guidance on finish options, ADA compliance, and installation—contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-3049EDA
- Handing: Right Hand
- Finish: Brass
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Mounting Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Sealing: V-shield Seal with 20% extended life
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Features: LCN Fast Power Adjust, fast and accurate installation
- Finish Options: Standard or optional powder coat, optional plated finish on metal cover and arm, optional SRI primer for corrosive environments
- Compatibility: All 4040 accessories
