Description

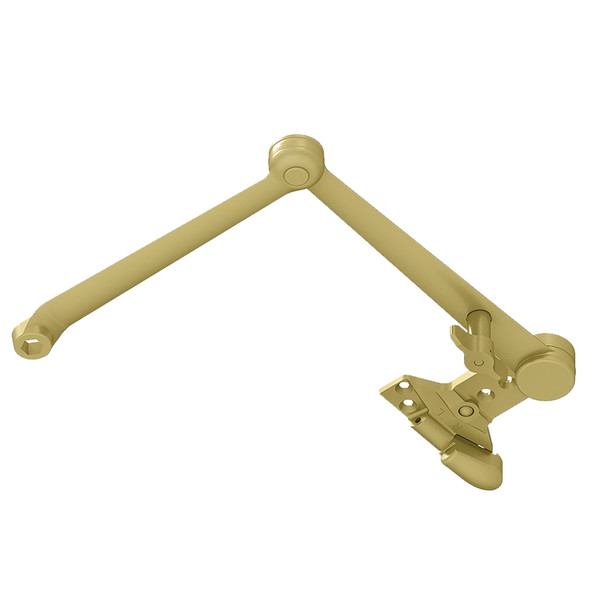

The LCN 4040XP-3049SCNS is a heavy-duty door closer arm built for institutional and high-traffic environments. It features 44% increased bearing load capacity, a 3/4 inch journal pinion, and the exclusive V-shield seal for superior durability. This non-handed closer delivers extra protection and reliable performance in demanding applications where standard closers fall short.
This closer mounts on the hinge side, top jamb, or with a parallel arm bracket on either right or left swinging doors. The non-sized cylinder adjusts for interior doors up to 5 feet and exterior doors up to 4 feet, with ADA-compliant options available. As an authorized LCN dealer, E.D. Locks provides expert guidance on sizing, finish options (standard powder coat, plated, or SRI primer for corrosive environments), and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4040XP-3049SCNS
- Finish: Black
- Bearing Load Capacity: 44% increased over standard
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Seal: V-shield with 20% longer life
- Material: Cast iron forged steel arm, double heat treated steel pinion
- Fluid: All weather
- Handed: Non-handed
- Interior Door Range: Up to 5 feet
- Exterior Door Range: Up to 4 feet
- Mount Options: Hinge side, top jamb, parallel arm
- Certification: UL and cUL listed, ANSI A156.4 Grade One
- Compatible Accessories: All 4040 accessories
