Description

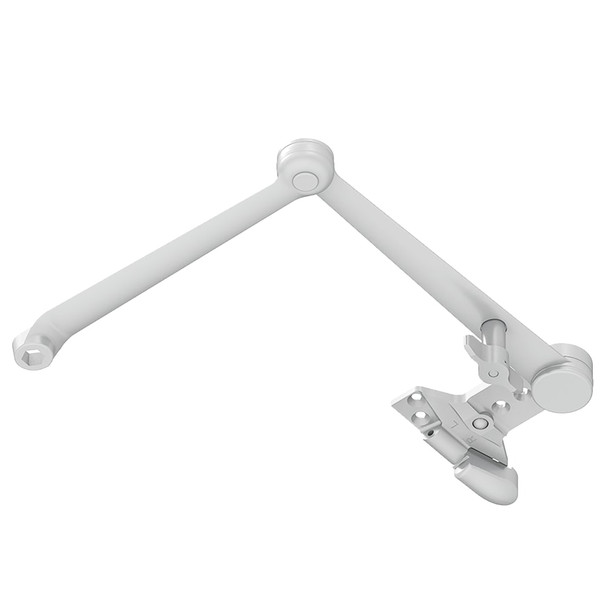

The LCN 4040XP-3049SCNS is a heavy-duty door closer arm engineered for institutional and high-traffic commercial facilities. It delivers 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and the widest bearing at 5/8". The V-shield seal offers 20% longer life, making this the ideal choice for demanding applications requiring maximum durability and reliability.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configurations for both right and left swinging doors. The non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0". As an authorized LCN dealer, E.D. Locks provides expert installation guidance, finish options (standard powder coat, optional plating, or SRI primer for corrosive environments), and fast accurate setup support. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions.
Specifications
- Brand: LCN
- Model: 4040XP-3049SCNS
- Finish: US26
- Construction: Cast iron forged steel arm, double heat-treated steel pinion
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% longer life
- Fluid: All weather
- Handed: Non-handed
- Interior Door Adjustment: Up to 5'0"
- Exterior Door Adjustment: Up to 4'0"
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL listed, ANSI Standard A156.4 grade one
- Features: Fast power adjust, fast and accurate installation
- Finish Options: Standard powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer for corrosive conditions
- Compatibility: All 4040 accessories
