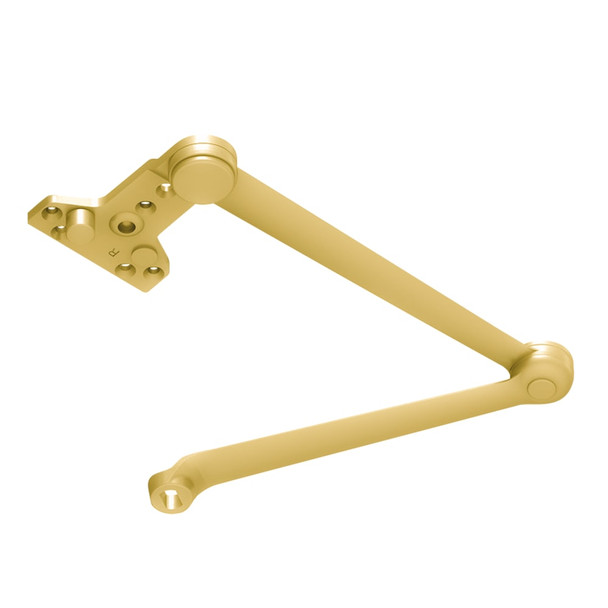

Description
The LCN 4040XP-3077CNS is a heavy-duty door closer engineered for institutional and high-traffic applications demanding exceptional durability. With 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a V-shield seal with 20% longer life, this closer excels in real-world demanding environments where reliability matters.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration, fitting interior doors to 5'0" and exterior doors to 4'0". Compatible with all 4040 accessories and adjustable for ADA compliance, the 4040XP is UL and cUL listed. Contact our experts at sales@edlocks.com or 1-877-207-6067 for help selecting finishes, custom options like SRI primer for corrosive environments, and proper installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-3077CNS
- Finish: Brass
- Material: Cast iron forged steel arm, double heat-treated steel pinion
- Bearing Load Capacity: 44% increase over standard models
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Seal Type: V-shield with 20% longer life
- Handed: Non-handed
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL listed, ANSI Standard A156.4 Grade One
- Fluid Type: All-weather
- Power Adjust: LCN Fast Power Adjust
- Optional Finishes: Custom powder coat, plated finish on metal cover/arm/fasteners
- Optional: SRI primer for corrosive conditions (powder coat only)
