Description

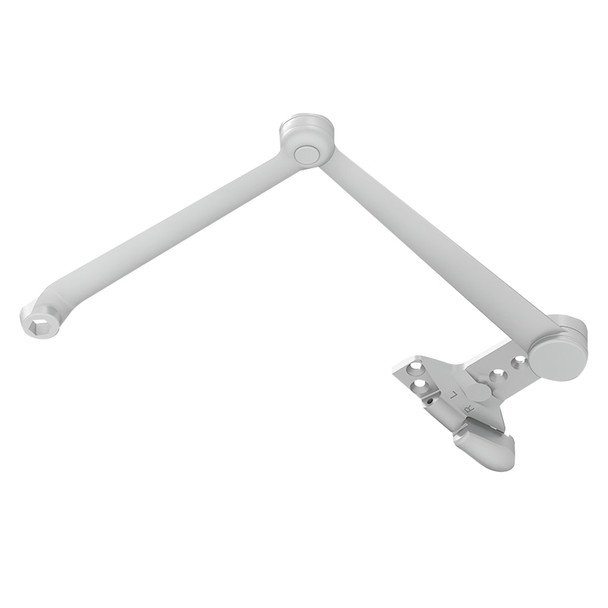

The LCN 4040XP is a heavy-duty door closer arm engineered for high-traffic institutional and commercial environments. It features 44% increased bearing load capacity, a 3/4" pinion journal, and reinforced steel construction to withstand demanding daily use. The V-shield seal extends component life by 20%, making it ideal for facilities requiring maximum durability and minimal maintenance.
This non-handed closer mounts on hinge side, top jamb, or parallel arm positions for right or left swinging doors up to 5'0" interior and 4'0" exterior. It is UL and cUL listed to ANSI A156.4 grade one and ADA compliant. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finish options (powder coat, plated, or SRI primer for corrosive environments), and installation. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Brand: LCN
- Model: 4040XP-3077SCNS
- Finish: US26 (Satin Chrome)
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Handed: Non-Handed
- Certifications: UL, cUL, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Fluid Type: All Weather
