Description

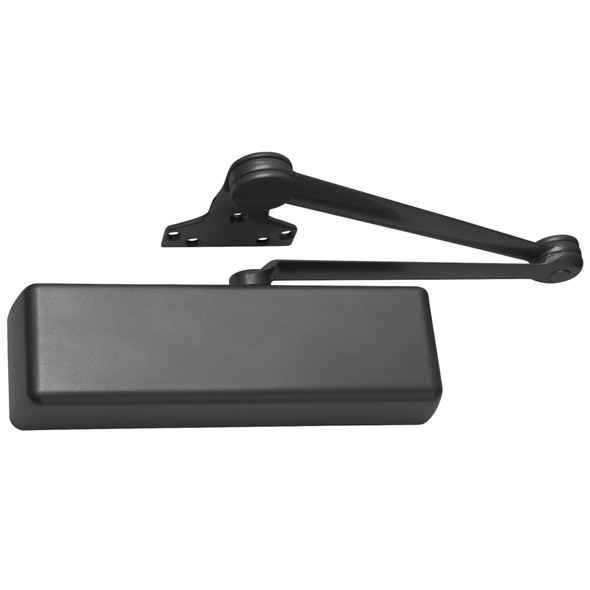

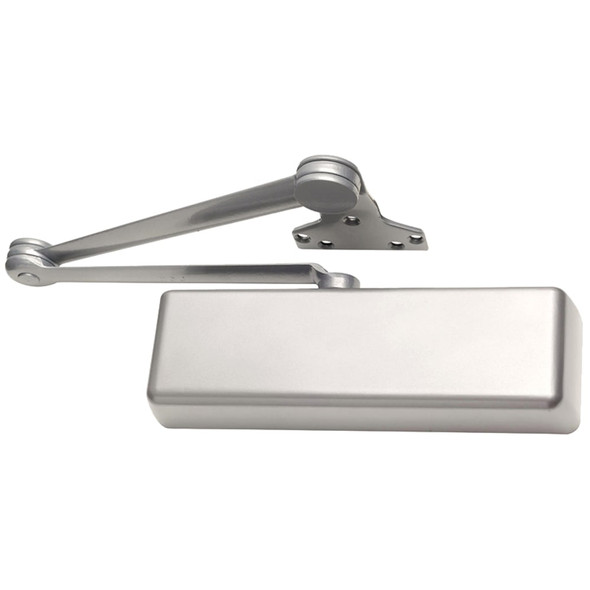

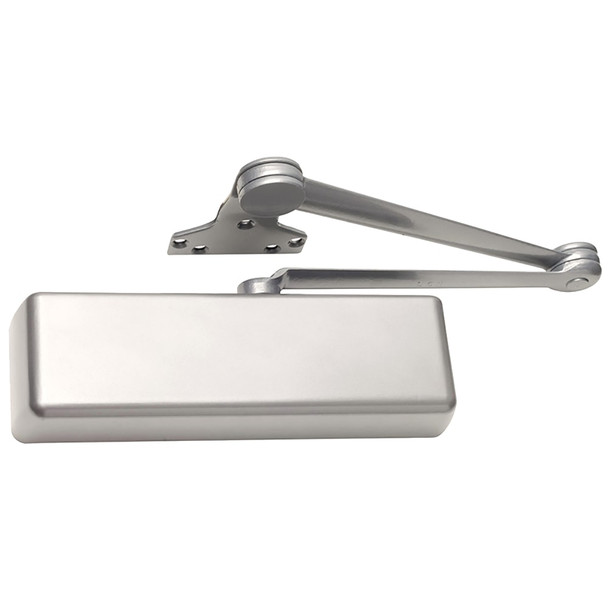

The LCN 4040XP-EDA is a heavy-duty institutional door closer built for high-traffic environments demanding maximum durability. Features 44% increased bearing load capacity, reinforced pinion teeth, and an enhanced V-shield seal rated 20% longer lasting. Ideal for schools, hospitals, offices, and commercial facilities where reliability cannot be compromised.
Adjustable for interior doors to 5'0" and exterior doors to 4'0", the 4040XP mounts hinge-side, top-jamb, or parallel arm on either swing direction. UL/cUL listed and ANSI A156.4 Grade One certified. Powder coat, plated, and SRI primer finishes available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish selection, and installation support.
Specifications
- Brand: LCN
- Model: 4040XP-EDA AL TORX
- Bearing Load Capacity: 44% increased vs. standard
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mount Options: Hinge-side, top-jamb, parallel arm
- Handed: Non-handed
- Seals: V-shield with extended life
- Materials: Cast iron, forged steel arm, double heat-treated pinion
- Fluid: All-weather
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Finishes: Standard/custom powder coat, optional plated, optional SRI primer
- Accessories: Compatible with all 4040 accessories
