Description

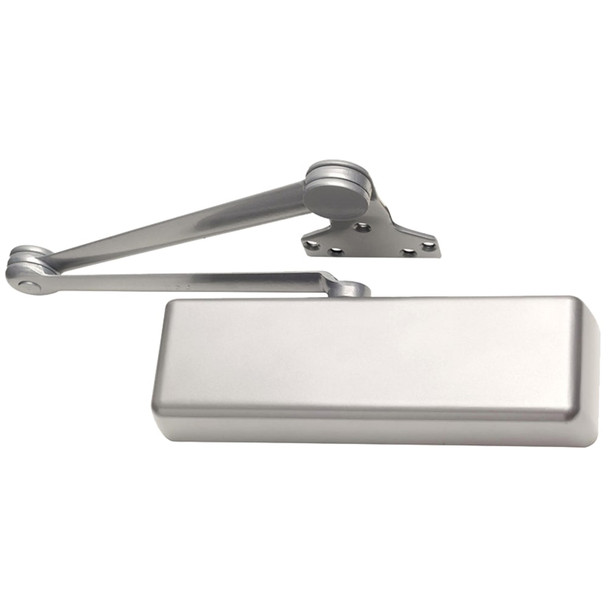

The LCN 4040XP-EDA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. It solves closing reliability problems in demanding applications with 44% increased bearing load capacity, a reinforced 3/4-inch pinion journal, and LCN's durable V-shield seal technology. Perfect for facilities managers and security professionals seeking maximum durability.
This right-hand closer mounts on the hinge side, top jamb, or with a parallel arm bracket, fitting doors up to 5 feet (interior) or 4 feet (exterior). It's non-handed, adjustable, UL and cUL listed, and ADA compliant. As an authorized LCN dealer, E.D. Locks offers expert configuration guidance and powder coat or plated finish options. Call 1-877-207-6067 or email sales@edlocks.com for application assistance.
Specifications
- Brand: LCN
- Model: 4040XP-EDA
- Handing: Right Hand
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Adjustment Range: Interior doors to 5 feet, exterior doors to 4 feet
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Mounting: Hinge side, top jamb, or parallel arm (with PA bracket)
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Fluid: All weather
- Features: V-shield seal with 20% longer life, fast power adjust, fast and accurate installation
- Finish Options: Standard or custom powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer for corrosive environments (powder coat only)
- ADA Compliant: Yes
