Description

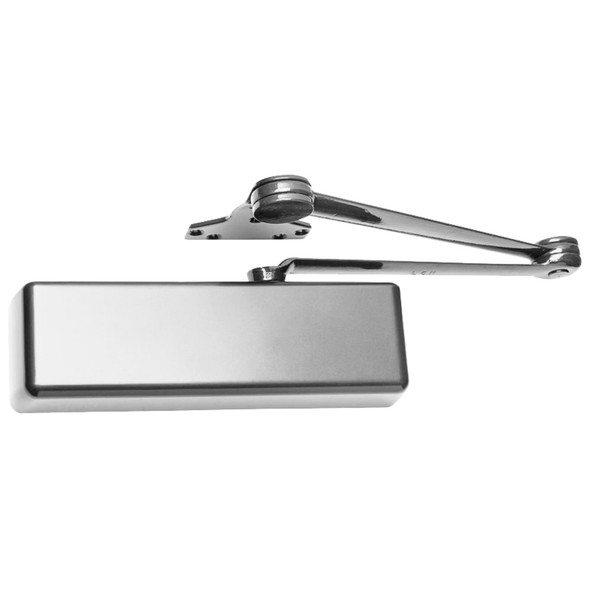

The LCN 4041DEL-HEDA is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It delivers 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and an enhanced V-shield seal rated for 20% longer service life. Perfect for facilities requiring maximum durability and reliability in demanding applications.
This closer accommodates interior doors up to 5'0" and exterior doors up to 4'0", and mounts on the hinge side, top jamb, or with a parallel arm bracket. It is UL and cUL listed, ANSI A156.4 Grade One certified, and non-handed for installation flexibility. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finish options, and corrosive-environment solutions. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: LCN
- Model: 4041DEL-HEDA
- Hand: Left Hand
- Bearing Load Capacity: 44% increased over standard
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Seal Technology: V-shield with 20% longer life
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid Type: All-weather
- Listings: UL and cUL Listed, ANSI A156.4 Grade One
- Installation Options: Hinge side, top jamb, or parallel arm mount
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer for corrosive conditions
