Description

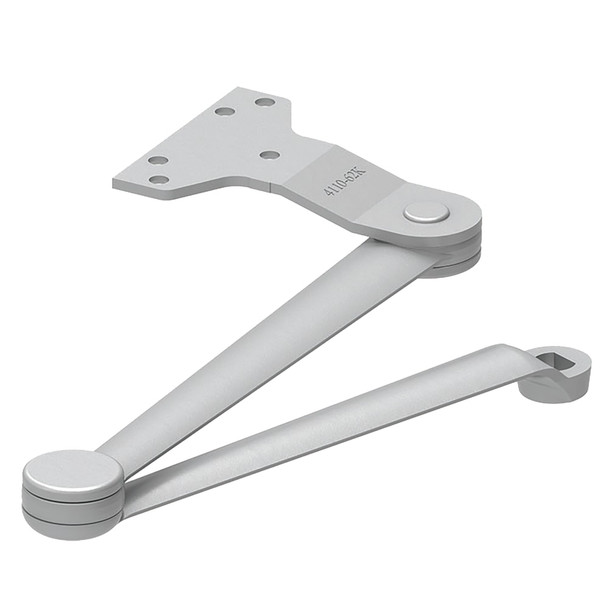

The LCN 4210-3077EDA is an extra duty aluminum door closer arm designed for commercial and institutional buildings. This self-closing mechanism solves accessibility and safety concerns by ensuring doors close reliably on interior doors up to 5'0" and exterior doors up to 4'0". The extra duty arm provides non-hold-open operation with a metal security cover and TORX machine screw pack.
Compatible with the standard 4210 series closer, this arm mounts parallel and requires specification of right or left swinging door orientation. The 4211 cylinder meets ADA requirements, and both standard and optional custom powder coat finishes are available. For expert guidance on installation, finish selection, or corrosive environment solutions, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for personalized support from an authorized dealer.
Specifications
- Model: 4210-3077EDA
- Material: Aluminum
- Arm Type: Extra Duty (Non-Hold-Open)
- Interior Door Height Capacity: Up to 5'0"
- Exterior Door Height Capacity: Up to 4'0"
- Includes: Metal Security Cover, TORX Machine Screw Pack
- Mount Style: Parallel Arm
- ADA Compliant: Yes (with 4211 cylinder)
- UL Listed: Yes (EDA or CUSH arms)
- Certification: ANSI Standard A156.4, Grade One
- Optional Finishes: Standard Powder Coat, Custom Powder Coat, SRI Primer
