Description

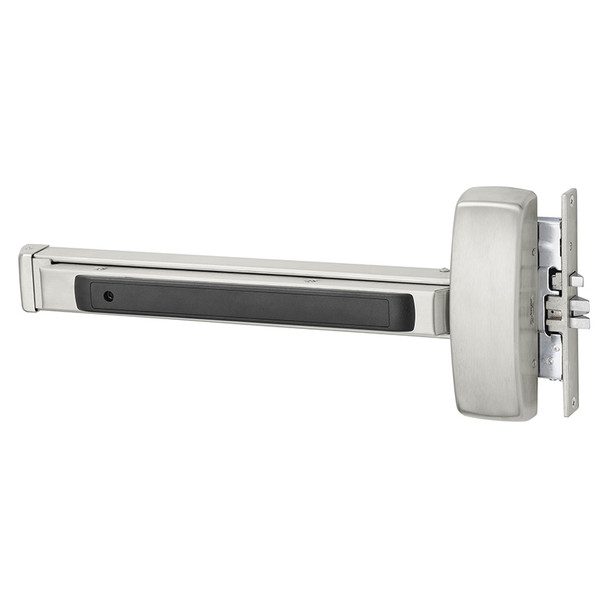

The Sargent 80 Series mortise exit device delivers Grade 1 security for wood and metal doors in facilities demanding durability and low maintenance. Built with modular construction and minimal moving parts, this left-hand reverse unit handles 1-3/4" thick doors with stiles 4-1/2" or wider. Ideal for commercial buildings, schools, hospitals and multi-tenant properties.
The E rail version fits doors 24" to 32" wide with no cutting required at 32". Modular design eliminates routine maintenance while exceeding ANSI/BHMA strength and cycle requirements. Options include delayed egress, alarmed exit and electric latch retraction for specialized applications. Contact an authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert assistance with rail selection, door prep and keying.
Specifications
- Configuration: Mortise, Left-Hand Reverse (LHR)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1-3/4" (44mm)
- Door Width Range (E Rail): 24" to 32" (61cm to 81cm)
- Minimum Stile Width: 4-1/2" (114mm)
- Certification: ANSI/BHMA Grade 1
- Door Types: Wood or Metal
