Description

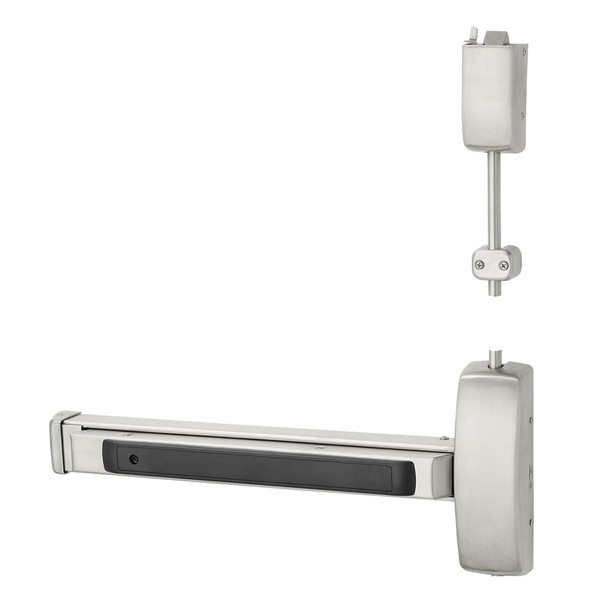

The Sargent 80 Series exit device is a Grade 1 rated panic bar for single or double wood and metal doors. Designed for high-traffic commercial facilities, it provides durability, security, and compliance with life-safety codes while requiring minimal maintenance thanks to its modular construction and few moving parts.
This left-hand reverse (LHR) model in satin stainless steel (32D) fits doors 24 to 32 inches wide and 1 3/4 inches thick without rail cutting. Compatible with wood or metal frames, it supports options like delayed egress, alarmed exit, and electric latch retraction. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for sizing guidance and installation support.
Specifications
- Brand: Sargent
- Model: 43-NB8710E ETA
- Configuration: Rim, left-hand reverse (LHR)
- Finish: Satin stainless steel (32D)
- Door thickness: 1 3/4 inch (44mm)
- Door width range: 24 to 32 inches (61cm to 81cm)
- Door types: Wood or metal
- Minimum stile width with trim: 4 1/2 inches (114mm)
- Minimum stile width without trim: 3 1/2 inches (89mm)
- Grade rating: ANSI/BHMA Grade 1
- Optional features: Delayed egress, alarmed exit, electric latch retraction
