Description

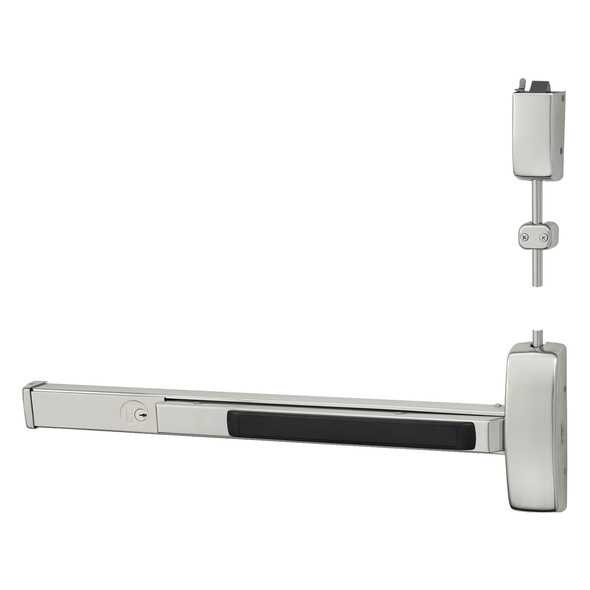

The Sargent 80 Series exit device delivers Grade 1 security and durability for wood or metal doors 1-3/4 inches thick. Designed for facilities requiring reliable emergency egress, this rim-mounted device features modular construction with few moving parts, ensuring maintenance-free operation and exceptional cycle strength that exceeds ANSI/BHMA standards.
This right-hand reverse (RHR) model fits door widths 24 to 32 inches with E Rail configuration and requires no cutting for standard 32-inch doors. Compatible with wood or metal construction, it supports optional features including delayed egress, alarmed exit, and electric latch retraction. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, installation, or custom configurations for your facility.
Specifications
- Brand: Sargent
- Model: 43-NB8715F ETJ RHR 32D
- Configuration: Rim-mounted, Right-Hand Reverse (RHR)
- Door Thickness: 1-3/4 inches (44mm)
- Door Width Range (E Rail): 24 to 32 inches (61cm to 81cm)
- No-Cut Size: 32 inches
- Minimum Stile: 4-1/2 inches (114mm) with trim; 3-1/2 inches (89mm) without trim
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
