Description

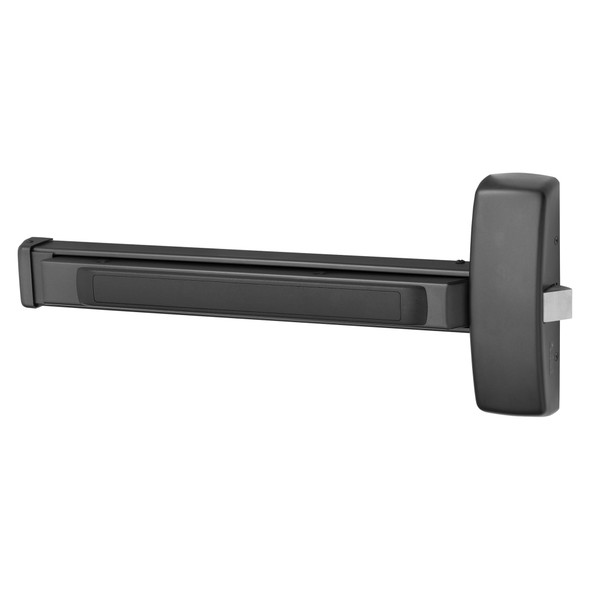

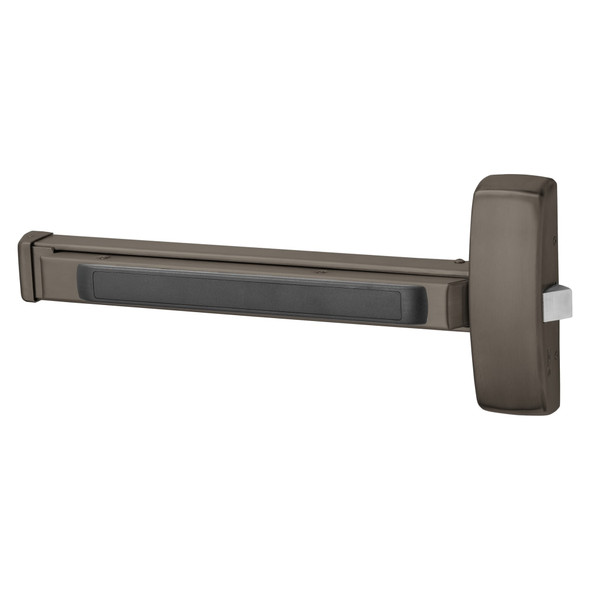

The Sargent 80 Series rim exit device is a heavy-duty panic hardware solution for wood and metal doors requiring code-compliant emergency egress. Built for single or double door applications, this Grade 1 device delivers reliable security and maintenance-free operation in high-traffic commercial and institutional facilities.
Designed for 1 3/4" thick doors up to 32" wide with the E rail configuration, this UL Fire and Panic listed device installs on standard rim exit frames. As an authorized Sargent dealer, E.D. Locks provides expert product selection and technical support at sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation for your building code requirements.
Specifications
- Brand: Sargent
- Model: 4356-8813E 32D
- Type: Rim Exit Device
- Configuration: Rim
- Door Thickness: 1 3/4" (44mm)
- Door Width: 24" to 32" (E Rail, no cutting for 32")
- Material Compatibility: Wood or metal doors
- Applications: Single door and double door with mullions
- Latching: Single point rim latching
- Certification: ANSI A156.3 Grade 1
- Fire Rating: UL Fire and Panic listed
