Description

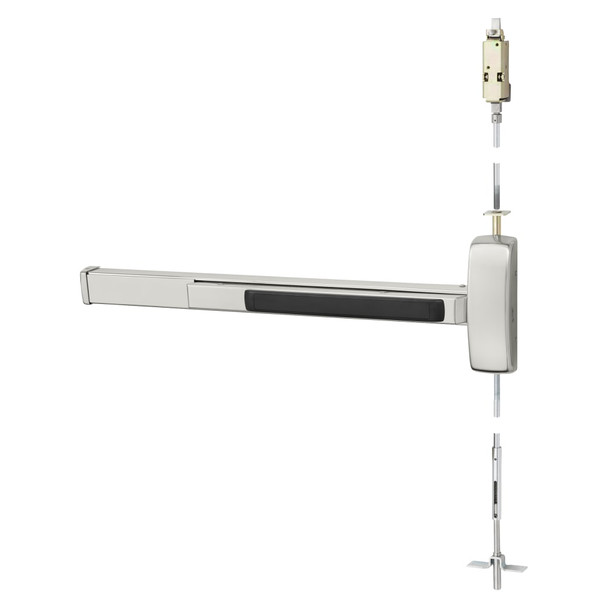

The Sargent 80 Series exit device is a Grade 1 panic hardware solution designed for commercial buildings requiring durable, maintenance-free security. This right-hand reverse (RHR) model with 32-inch door width compatibility exceeds ANSI/BHMA standards for cycle and strength, making it ideal for high-traffic facilities, educational institutions, and buildings where long-term reliability matters.
Installation requires metal doors minimum 1-3/4" thick with 4-1/2" minimum stile width. The device ships with stainless steel top bolt, machine screws, and standard hex key dogging. Choose from electric options including delayed egress, alarm, photoluminescent coating, and remote latch retraction. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification assistance and free shipping on orders over $450.
Specifications
- Model: 4356-AD8610F ETL
- Configuration: Right-Hand Reverse (RHR), F Rail (33-36" door width)
- ANSI/BHMA: Grade 1
- Door Thickness: 1-3/4" minimum; 1-3/4" to 2-1/4" with specification
- Stile Width: 4-1/2" minimum
- Centerline Height: 41" standard; 38" for elementary schools
- Max Door Height: 96"
- Center Case Dimensions: 8-3/8" W x 2-5/8" H
- Pushbar Projection: 3" neutral, 2-1/8" depressed
- Strike: 650 Top and 606 Bottom (panic and fire-rated)
- Fasteners: Machine screws, stainless steel top bolt
