Description

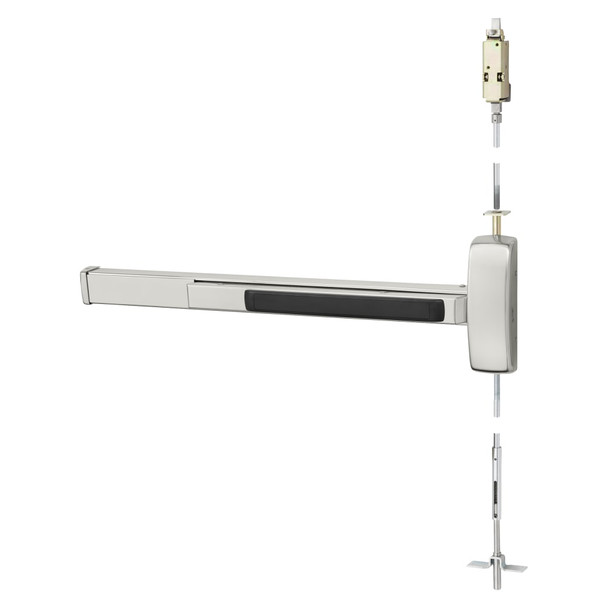

The Sargent 4356-AD8615G is a Grade 1 exit device built for metal doors requiring durable, maintenance-free security. Designed for rim mounting on right-hand reverse openings, this 80 Series device exceeds ANSI/BHMA standards with modular construction and few moving parts, making it ideal for commercial buildings, schools, and facilities prioritizing long-term reliability and code compliance.
Compatible with metal doors 1-3/4" to 2-1/4" thick and 24" to 48" wide (rail size varies by door width). Standard hex key dogging and stainless steel top bolt included. Optional electric features (alarm, latch monitoring, delayed egress, remote retraction) are available for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification and ordering assistance as an authorized Sargent dealer.
Specifications
- Series: 80 Series
- Mounting: Rim, Right-Hand Reverse
- Door Compatibility: Metal, 1-3/4" to 2-1/4" thick
- Door Width Range: 24" to 48"
- Device Centerline Height: 41" (standard applications), 38" (accessibility)
- Maximum Door Opening: 96" height, 120" total
- Center Case Dimensions: 8-3/8" x 2-5/8"
- Pushbar Projection: 3" (neutral), 2-1/8" (depressed)
- Certification: ANSI/BHMA Grade 1
- Top Bolt: Stainless steel
- Standard Feature: Hex key dogging
- Optional: Alarm, beacon, photoluminescent, illuminated touchpad, latch monitoring, delayed egress, electric dogging
