Description

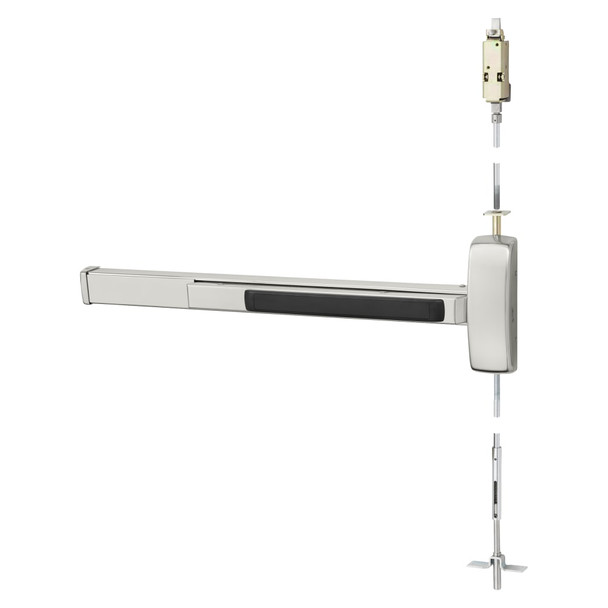

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for commercial metal doors requiring ANSI/BHMA Grade 1 certified security and durability. Ideal for facilities prioritizing reliable emergency egress with minimal maintenance, this rim-mounted device exceeds industry strength and cycle requirements and features modular construction with few moving parts.
This right-hand reverse (RHR) model suits metal doors 1 3/4" to 2 1/4" thick and includes factory-cut F-rail compatibility for 33" to 36" door widths. Compatible with 650 top and 606 bottom strikes and available with electric options including delayed egress, alarms, and latch monitoring. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Model: 4356-WD8640F ETL
- Configuration: Rim, Right-Hand Reverse
- Door Type: Metal, 1 3/4" to 2 1/4" thick
- Minimum Stile Width: 4 1/2"
- Rail Type: F-Rail (33" to 36" door widths, pre-cut for 36")
- Top Bolt: Stainless steel
- Standard Dogging: Hex key (non fire-rated)
- Device Centerline: 41" from finished floor (standard); 38" for elementary schools
- Center Case Dimensions: 8 3/8" x 2 5/8"
- Pushbar Projection: 3" neutral, 2 1/8" depressed
- Max Door Height: 96"
- Certification: ANSI/BHMA Grade 1, ETL, Fire-rated compatible
- Strikes: 650 top and 606 bottom (panic and fire-rated)
