Description

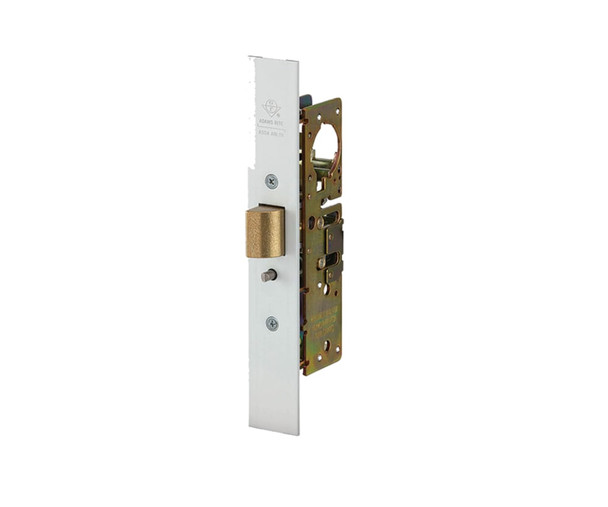

The Adams Rite 4920AN is a heavy-duty mortise deadlatch designed for hollow metal or wood doors requiring ANSI-compliant hardware. This key-controlled bolt hold-back latch lets doors free-swing during business hours and revert to exit-only when the bolt latches, solving the challenge of controlling traffic while maintaining emergency egress compliance.
The 4920AN fits any door prepared to MS1850SN specifications without modification and accepts standard 1-5/32 inch mortise cylinders with MS cam. It features a steel case with corrosion-resistant plating, solid brass latch bolt, stainless steel auxiliary pin to prevent loiding, and reversible handing. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on backset selection, finish options, and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Adams Rite
- Model: 4920AN
- Cylinder Backset: 1-1/2" or 2-3/4"
- Case: 7/8" x 5-13/16" x depth (varies by backset)
- Latchbolt: 5/8" x 1" x 5/8" throw, solid brass
- Faceplate: 1-1/4" x 8" armored flat, adjustable for beveled edge doors
- Auxiliary Latchpin: Stainless steel
- Case Material: Steel with corrosion-resistant plating
- Strike: 4506-02 stainless steel, US32D Satin finish, ANSI flat jamb preparation
- Cylinder: Operable by standard 1-5/32" mortise cylinder with MS cam
- Handing: Reversible with screwdriver
- Replaces: 4520 and 4720 ANSI Deadlatches
